EnGenius ECB350 Wireless Indoor Access Point

Based on 0 ratings.

SKU:NET-EL-ECB350

If you are a Wireless or comms reseller and are interested in selling 4Gon products as part of your business offering, you can apply to become an authorised reseller. Once accepted, you will have access to reseller pricing. Apply now

EnGenius ECB350 Datasheet (PDF)
EnGenius ECB350 Manual (PDF)

Key Features

5dBi Antenna with Reverse SMA connector
High Power, Long range Wi-Fi
Wireless-N with multiple operation modes

Product Details
Specification
Reviews
Questions

Please Note: This product has been discontinued. Please see EnGenius Access Points to find an alternative.

EnGenius ECB350 Wireless Indoor AP/CB/WDS/Repeater

The EnGenius ECB350 is a 2.4GHz Wireless-N Indoor Access Point with 29 dBm transmit power for long range coverage, wireless speeds up to 300Mbps and a Gigabit port for connecting to a switch or router. It’s ideal for expanding a network to support additional users. Includes Zone Controller AP Management Software.

EnGenius ECB350 Key Features

300Mbps 11n
Supports PoE
5dBi Antenna with Reverse SMA connector
High Power, Long range Wi-Fi
Wireless-N with multiple operation modes
Gigabit Ethernet port

The ECB350 is a 300Mbps wireless-n multi-function gigabit Access Point / Client Bridge which offers unlimited coverage, strong penetration, secure network management and 802.3af PoE connection.

The ECB350 is designed with 8 operation modes, users can set different modes in different environments.

EnGenius ECB350 Wireless Indoor Access Point

EnGenius ECB350 - Technical Specifications

Hardware Specifications

MCU/RF: AR7242 + AR9283
Memory: 32 MB
Flash: 8 MB

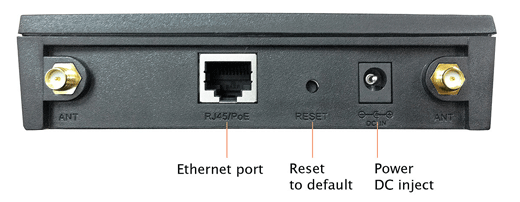

Physical Interface: LAN: 1 x 10/100/1000 Gigabit Ethernet (RJ-45) port, Reset Button, Power Jack
LEDs Status: Power/Status, LAN (10/100/1000Mpbs), WLAN (Wireless connection)
Power requirement: Power Supply: 90 to 240 VDC ± 10%, 50/60 Hz (Depends on different countries), Active Ethernet (Power over Ethernet, IEEE802.3af), 48 VDC/0.375A, Device: 12V/1A

RF Specifications

Wireless standard: IEEE802.11 b/g/n
Frequency: 2.400 ~ 2.484GHz (b/g/n)
Modulation Technology: OFDM: BPSK, QPSK, 16-QAM, 64-QAM, DBPSK, DQPSK, CCK
Operating Channels: 11 channels
Transmit Power: 802.11b(2.412 ~ 2.472 GHz) 29 dBm @ 1Mbps, 29 dBm @ 2Mbps, 29 dBm @ 5.5Mbps, 29 dBm @ 11Mbps
802.11g(2.412 ~ 2.472 GHz) 29 dBm @ 6Mbps, 29 dBm @ 9Mbps, 28 dBm @ 12Mbps, 28 dBm @ 18Mbps, 24 dBm @ 24Mbps, 24 dBm @ 36Mbps, 23 dBm @ 48Mbps, 23 dBm @ 54Mbps
802.11n(2.412 ~ 2.472 GHz) 26 dBm @ MCS0/MCS8, 26 dBm @ MCS1/MCS9, 25 dBm @ MCS2/MCS10, 25 dBm @ MCS3/MCS11, 24 dBm @ MCS4/MCS12, 24 dBm @ MCS5/MCS13, 23 dBm @ MCS6/MCS14, 23 dBm @ MCS7/MCS15
Receiver Sensitivity: 802.11b (2.412 ~ 2.472 GHz) best ≤ -98 dBm
802.11g (2.412 ~ 2.472 GHz) best ≤ -93 dBm
802.11n (2.412 ~ 2.472 GHz) best ≤ -93 dBm
Antenna: 2x external 5dBi SMA antennas (Diversity support)

Environment and Physical

Temperature Range: Operating: 0 to 50° C (32° to 122° F), Storage: -20 to 60° C (-4° to 140° F)
Humidity (non-condensing): Operating: 90% or less, Storage: 90% of less
Dimensions: L: 5.32"(135mm), W: 4.14"(105mm), H: 1.18"(30mm)
Weight: 0.77 lb. (280g)
Certifications: FCC, CE, IC

Management

Tx Power Control: Adjust transmit power by dBm
Configuration: Web-based configuration (HTTP)/Telnet
Telnet Server: CLI
Firmware Upgrade: Upgrade firmware via web browser
Administrator Setting: Administrator Username & Password change
Reset Setting: Reboot (press 1 second). Reset to Factory Default (press 10 second)
System Monitoring: Status Statistic and Event log
SNMP: V1 , V2c
MIB: MIB I , MIB II(RFC1213) and Private MIB
Traffic Measurement: Per interface
Auto-channel Selection: Automatically selecting least congested channel
Bandwidth Measurement: IP range and bandwidth management
Backup & Restore: Save & restore settings through Web interface
Diagnosis: IP pinging statistics
AP Detection: Scanning for available EnGenius APs
