Please Note: The EnGenius ENH200EXT Outdoor Client Bridge / Access Point has been discontinued. For an alternate product, please see the EnGenius ENH210EXT.

EnGenius ENH200EXT Outdoor Client Bridge / Access Point

EnGenius ENH200EXT is a high power long range wireless Access point/bridge operates on 2.4GHz band with 500mW power output and up to 150 Mbps maximum wireless date rate.

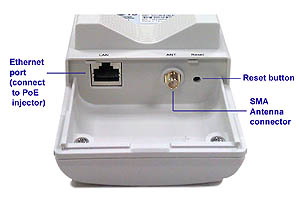

Featuring highly secure WPA/WPA2, WEP encryption and MAC address filter ensure an uncompromised network security. With a SMA connector on board and a SMA-N-type converter cable, it works with EnGenius EAG2408 omni directional high gain attenna* as well as any antenna with N type female connector. The installer can have the antenna of choice to create wireless network connection with miles in range**. engenius-enh200ext-outdoor-client- bridge-access-point-illustration1

Designed for outdoor application, the IP65 rated device is great for high-speed wireless Internet access, connecting outdoor IP camera, connecting multiple buildings’ networks. The package also comes with PoE kit, pole mount kit. With available RSSI signal strength LED, making the installation of ENH200 easier than ever.

Key Differentiators

• High-Power Long Range coverage
• Maximum 500mW Power output ensures robust signal overcoming long distances barrier that Provides superior Wi-Fi coverage over competitors
• High performance three time as fast as wireless G access point.
• Built-in SMA connector & included SMA-N-type conversion cable allows installers to choose different antenna for the device.

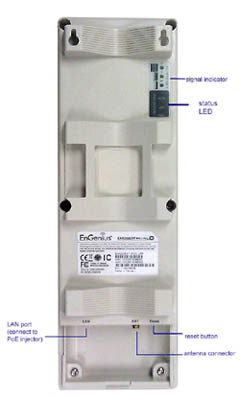

• Designed for outdoor usage with IP65 rated housing engenius-enh200ext-outdoor-client- bridge-access-point-illustration2 • Supports multiple SSID/VLAN binding provide business class network security

ENH200EXT features & benefits:

• High-output power up to 27 dBm delivers superior range and coverage

• Fully interoperable with IEEE 802.11b/IEEE 802.11g/IEEE 802.11n-compliant devices
• Built-in RP SMA connector & SMA-N-type conversion cable give installer to choose the type of antenna w/ different gains that perfectly fit the project.
• High-speed data rates up to 150 Mbps make the ENH200EXT ideally suited for handling heavy data payloads such outdoor security camera, video streaming, etc.
• WPA2/WPA/ WEP/ IEEE 802.1x support and MAC address filtering ensure secure network connections
• RSSI indicator makes it easy to select the best signal for Access Point connections
• Four SSIDs provides different wireless network accesses with the same access point
• Multi-function operation (Access point/Client/WDS bridge/WDS AP) modes provide extremely flexible deployment
• WMM Quality of Service (QoS) support enhances performance and user experiences

EnGenius ENH200EXT Outdoor Client Bridge / Access Point Technical Specifications

Hardware:

MCU: Atheros AR7240
Memory: 32 MB
Flash: 8 MB
Physical Interface: 10/100 Fast Ethernet port x 1
One Reset button
LED’s Status:
Power (Status)
LAN1 (10/100Mbps)
WLAN (Wireless is up)
3 x Link Quality (Client Bridge mode)
Power requirements:
Active Ethernet: (Power over Ethernet) Proprietary PoE design
Power Adapter: 24VDC / 0.6A

RF:

Wireless standard
IEEE802.11 b/g/n
Frequency Band: 2.412 ~ 2.472GH (b/g/n)
Modulation Technologies: IEEE 802.11b: DBQSK, DQPSK, CCK
IEEE 802.11g: BQSK, QPSK, 16-QAM, 64-QAM
IEEE 802.11n: BQSK, QPSK, 16-QAM, 64-QAM
Operating Channels:
11 channels
Transmit Power
802.11b (2.412 ~ 2.472GHz)
27 dBm@1Mbps
27 dBm@2Mbps
27 [email protected]
27 dBm@11Mbps
Antenna: Built-in RP SMA connector & SMA-N-type conversion cable
Antenna not included
Frequency Band Range: 2.4 GHz ~ 2.5 GHz

Software:

Topology: Infrastructure
Protocol: IEEE802.3, 802.3U, 802.11 b/g/n (2.4 GHz)
Operation mode: Client Bridge/Access Point/WDS bridge/Client Router
Service: DHCP server/client
VPN: VPN Pass-through
Networking: PPPoE, PPTP
Narrow bandwidth (selectable 5MHz/10MHz/20MHz/40MHz )

Management:

Firmware upgrade: Reset & Backup, Ping & Trace Route
MIB: MIB I, MIB II(RFC1213), Private MIB
SNMP: SNMP v1, v2c
Security:
WEP Encryption-64/128/152 bit
WPA/WPA2 Personal (WPA-PSK using TKIP or AES)
WPA/WPA2 Enterprise (WPA-EAP using TKIP)
802.1x Authenticator
Hide SSID in beacons
MAC address filtering, up to 50 field
Wireless STA (Client) connected list
QoS
WMM (Wi-Fi Multimedia)

Environmental and Physical:

Temperature Range
Operating: -20°C to 70°C (-4°F to 158°F)
Storage: -30°C to 80°C (-22°F to 176°F)
Humidity (non-condensing): 0%～90% typical
Dimensions: Length: 10.24” (260mm) x Width: 3.31” (84mm) x Height: 2.17” (55mm)
Weight: 0.9 Ib
Certifications: FCC, CE, IC
