HikVision 1.3MP Villa Door Station 1Ch (DS-KV8102-IP)

0 Based on 0 ratings.
Write a Review
SKU:DS-KV8102-IP

Accessories, Add-Ons, and Extras

Need Trade Pricing?

If you are a Wireless or comms reseller and are interested in selling 4Gon products as part of your business offering, you can apply to become an authorised reseller. Once accepted, you will have access to reseller pricing. Apply now

Documents and Manuals

  HikVision Plastic Villa Door Station DS-KV8102-IP/VP Datasheet (PDF)
  HikVision Video Intercom Door Station V Series Quick Start Guide (PDF)
  HikVision Video Intercom Door Station V Series User Manual (PDF)

Key Features
  • High-Performance Embedded SOC Processor
  • One-touch calling function
  • Waterproof
  • Product Details
  • Reviews
Please Note: This product has been discontinued. Please see the Hikvision Door Entry Systems range for an alternative.

HikVision 1.3MP Villa Door Station 1Ch (DS-KV8102-IP)

The HikVision DS-KV8102-IP is an outdoor plastic door station with a 1.3MP HD camera, access control function and a tampering alarm. The DS-KV8102-IP offers complete security to residential and business applications.

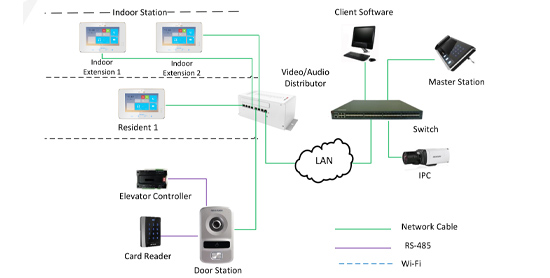

Typical Application

HikVision DS-KV8102-IP Key Features

  • Video intercom function
  • Access control function
  • Issues cards via door station, up to Max. 256 cards (This function will be invalid if the card has been issued via the client.)
  • Card readers supported
  • Self-adaptive supplement
  • High-Performance Embedded SOC Processor
  • One-touch calling function
  • HD video surveillance
  • Noise suppression and echo cancellation
  • H.264 video compression
  • Low illumination
  • Remote reboot, remote upgrade, time synchronisation via NTP, and batch configuration function
  • Remote unlocking via the client or the app
  • Remotely answering the call via the client or the app
  • Tampering alarm and door magnetic alarm
  • Message notification function
  • Auto-uploads captured pictures to FTP or the client while unlocking the door
HikVision DS-KV8102-IP Technical Specification

System parameters

  • Processor: High-Performance Embedded SOC Processor
  • Operation system: Embedded Linux Operation System

Video parameters

  • Camera: CMOS Low Illumination 1.3 MP HD Colourful Camera
  • Video compression standard: H.264
  • Resolution: 1280 × 720
  • Video frame rate: 25 fps

Audio parameters

  • Audio input: Built-in Omnidirectional Microphone
  • Audio output: Built-in Loudspeaker
  • Audio compression standard: G.711 U
  • Audio compression rate: 64 Kbps
  • Audio quality: Noise Suppression and Echo Cancellation

Access control parameters

  • Internal card reader: Built-in IC Card Reader
  • Exit button: Exit Button for Opening the Door
  • Door magnetic detection: Detects Door Magnetic Status

Light supplement

  • Light supplement mode: IR Supplement

Network parameters

  • Ethernet: 10/100 Mbps Self-Adaptive Ethernet
  • Network protocol: TCP/IP, RTSP

Alarm parameters

  • Alarm input: Door Magnetic Alarm, Tampering Alarm

Device interfaces

  • Network interface: 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
  • RS-485: 1 RS-485 Half-Duplex Port
  • I/O input: 4
  • I/O output: 1

General

  • Material: Plastic
  • Power supply:
    - 24 VDC, Power Over Network Cable (DS-KAD606, DS-KAD612)
    - 12 VDC
  • Power consumption: ≤12 W
  • Working temperature: -40° C to +60° C (-40° F to 140° F)
  • Working humidity: 10% to 90%
  • IP protection level: IP65
  • Dimensions (L × W × H): 164 mm × 97 mm × 54.4 mm (6.46" × 3.82" × 2.14")
  • Certification: FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
