HikVision 6 MP 2.8mm DarkFighter Fixed Dome Network Camera (DS-2CD2165G0-IS)
The Hikvision DS-2CD2165G0-IS is a fixed dome camera with a 6 megapixel camera. It features next-gen DarkFighter technology, giving you incredible low-light performance.
Hikvision DS-2CD2165G0-IS Key Features
- High quality imaging with 6 MP resolution
- 2.8 mm fixed lens
- Excellent low-light performance via powered-by-DarkFighter technology
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- -S: audio and alarm interface available
- Water and dust resistant (IP67) and vandal proof (IK10)
- Robust structure design with full metal materials.
DarkFighter Technology
Most security incidents happen at night. Of all known crimes, 70% happen under the cover of darkness. Information about suspects — such as facial features, height, and clothing — and vehicles — license plate number, color, type — are all crucial forensic evidence. In low-light environments, however, these critical details can be easily missed by conventional cameras. Infrared does improve image sharpness on conventional cameras, but it cannot provide color reproduction.
Hikvision has dedicated years of research & development efforts to image processing in varied low-light environments. Based on the process human eyes use to perceive color and brightness, it employs two sensors — one for IR imaging, guaranteeing brightness and sharpness, the other for visible light, guaranteeing vivid color reproduction. These signals are then combined into ONE BRIGHT, FULL-COLOR image.

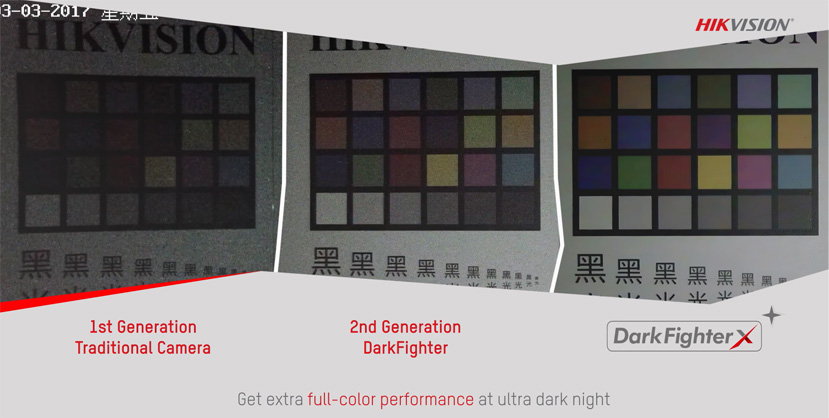

DarkFighterX Technology enables unparalleled brightness and vivid color, along with amazingly sharp, clear images in ultra-low light.
Hikvision DS-2CD2165G0-IS - Technical Specifications
Camera
- Image Sensor: 1/2.4" Progressive Scan CMOS
- Min. Illumination: Color: 0.008 Lux @ (F1.2, AGC ON), 0.014 Lux @ (F1.6, AGC ON)
- Shutter Speed: 1/3 s to 1/100,000 s
- Slow Shutter: Yes
- Focal length: 2.8mm
- Focus: Fixed
- Aperture: F1.6
- FOX: 2.8 mm, horizontal FOV: 99°, vertical FOV: 61°, diagonal FOV: 128°
- Lens Mount: M12
- Day &Night: IR cut filter
- DNR: 3D DNR
- Wide Dynamic Range: 120dB
- 3-Axis Adjustment: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Compression Standard
- Video Compression:
- Main stream: H.265/H.264
- Sub-stream: H.265/H.264/MJPEG
- Third stream: H.265/H.264
- H.264 Type: Main Profile/High Profile
- H.264+: Main stream supports
- H.265 Type: Main Profile
- H.265+: Main stream supports
- Video Bit Rate: 32 Kbps to 16 Mbps
- Max. Resolution: 3072 x 2048
- Main Stream:
- 50Hz: 20 fps (3072 x 2048, 3072 x 1728, 2944 x 1656), 25 fps (2560 x 1440, 1920 x 1080, 1280 x 720)
- 60Hz: 20 fps (3072 x 2048, 3072 x 1728, 2944 x 1656), 30 fps (2560 x 1440, 1920 x 1080, 1280 x 720)
- Sub-Stream:
- 50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
- 60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
- Third Stream:
- 50Hz: 25fps (1280 x 720, 640 x 360, 352 x 288)
- 60Hz: 30fps (1280 x 720, 640 x 360, 352 x 240)
- Image Enhancement: BLC/3D DNR/HLC
- Image Setting: Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance adjustable by client software or web browser
- ROI (Region ofInterest): Support 1 fixed region for main stream and sub-stream separately
- Day/Night Switch: Day/Night/Auto/Schedule/Triggered by Alarm In (-S)
- * Note: When the main stream resolution is 2944 x 1656 and above, max frame rate is 20 fps for all streams.
Network
- Network Storage: Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
- Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
- General Function: Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTPlistening
- API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
- Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2,EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSEand digest authentication for ONVIF, TLS1.2
- Simultaneous LiveView: Up to 6 channels
- User/Host: Up to 32 users; 3 levels: Administrator, Operator and User
- Client: iVMS-4200, Hik-Connect, Hik-Central
- Web Browser:
- Plug-in required live view: IE8+
- Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+
- Local Service: Chrome 41.0+, Firefox 30.0+
Interface
- Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
- Audio (-S): 1 audio input (line in/mic in), 1 audio output interface, terminal block
- Alarm (-S): 1 alarm input, 1 alarm output (max. 12 VDC, 30 mA), terminal block
- On-board Storage: Built-in micro SD/SDHC/SDXC slot, up to 128 GB
- Reset button: Yes
Smart Feature-Set
- Smart Event: Line crossing detection, intrusion detection, unattended baggage detection, object removal detection, facedetection, scene change detection
- Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegallogin, HDD full, HDD error)
- Linkage Method: Trigger recording: memory card, network storage, pre-record and post-record; Trigger captured pictures uploading: FTP, HTTP, NAS, Email; Trigger notification: HTTP, ISAPI, alarm output (-S), Email
Audio(-S)
- Environment Noise Filtering: Yes
- Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3
- Audio Bit Rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
General
- Operating Conditions: -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
- Web Client Language: 32 languages - English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish,Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian,Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- Power Supply: 12 VDC ± 25%, 5.5 mm coaxial power plug; PoE (802.3af, class 3)
- Power Consumption: 12 VDC, 0.5 A, max: 6 W; PoE: (802.3af, 36 VDC to 57 VDC), 0.2 A to 0.1 A, max: 7.5 W
- IR Range: Up to 30 m
- Wavelength: 850 nm
- Protection Level: IP67, IK10
- Material: Camera body: metal, bubble: plastic
- Dimensions: Camera: Φ 111 x 82.4 mm (Φ 4.4″ x 3.2″) With package: 134 x 134 x 108 mm (5.27″ x 5.27″ x 4.25″)
- Weight: Camera: 500 g (1.1 lb.) With package: 800 g (1.8 lb.)
