Peplink Software-Defined (SD) 48 PoE+ Ports Switch (PSW-48-800W)
The Peplink PSW-48-800W is a new class of switch with cloud intelligence. Managing your switches and all connected devices can be a worry-free experience. Yet current switches can cause as many switches as they solve. The Peplink PSW-48-800W is a switch is smart and easy enough to use to address problems such as no configuration transparency, time consuming troubleshooting
Peplink PSW-48-800W Key Features
- Centralised reporting
- Cloud-based management tool to see all devices in your network
- Search by MAC address and pinpoint the culprit’s exact port.
- Modern Cloud-Based Management
- Push configurations to device groups and remotely schedule PoE port operation
Fast and easy port management
Configure multiple ports with a few clicks, and access power consumption history on a single screen. Switch management is hosted on our InControl cloud management platform (public and private versions available), so you can configure your switch from any web browser.
Instant Network-Wide Troubleshooting
Client information from all your switches is aggregated on InControl. So when trouble occurs, you can quickly search for any device across all your SD Switches, and instantly find out which devices are causing problems.
Network-Wide VLAN Configuration
Simplify management and cut down maintenance time by unifying your VLAN management across all your Peplink devices. InControl, our cloud-based management platform, makes it easy.

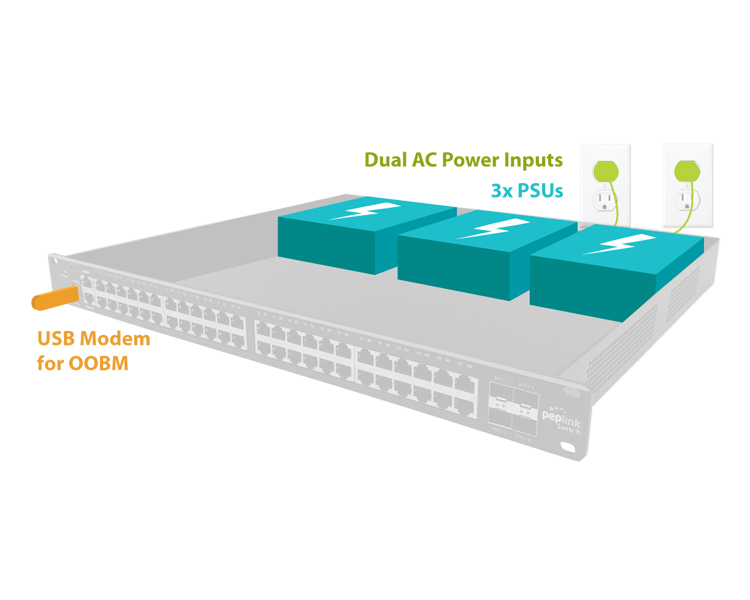

Multiple Redundancies for Unbreakable Reliability
The 24-port version of the SD Switch is equipped with several unique technologies to ensure that your powered devices stay powered.
Dual AC Power Inputs
Connect the SD Switch to two independent power sources. Even if one source loses its connection, the SD Switch will keep on running.
Up to 3x PSU
Even if a power supply goes down, the SD Switch will keep on running. Power load balancing ensures longer PSU life expectancy.
Out-of-Band Management (OOBM)
Plug in a USB modem to enable secure out-of-band management using our cloud management tool.
Peplink PSW-48-800W Technical Specification
General
- LAN Interface: 48x 802.3at (PoE+) GE Ports, 4x 10G SFP+ Ports
- VLAN Groups: Yes
- Power Input: 2x 100V – 240V Redundant AC Inputs
- Integrated Power Source: 3x Redundant PSU
- Power Consumption: 100W System, 800W PoE+ Power Budget
- Dimensions: 19.1 x 15.7 x 1.7 inches, 485 x 400 x 45 mm, (L x W x H)
- Weight: 15.4 pounds, 7 kg
- Operating temperature: 32° – 104°F, 0° – 40°C
- Humidity: 15% – 95% (non-condensing)
- Warranty: 1-Year Limited Warranty
