PheeNet WLO-15802N Outdoor Long Range WiFi Access Point, Point-to-Point Backhaul

IEEE802.11a/n 5GHz 300Mbps MIMO Wifi / Wireless Outdoor Bridge / Wireless Backhaul, W/2 x N-Type connector)

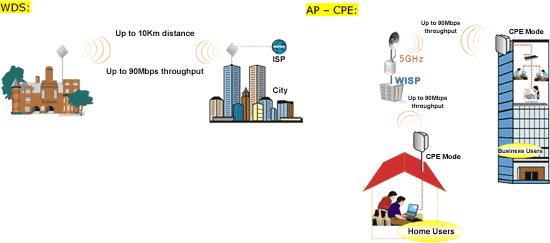

The PheeNet WLO-15802N can be positioned as a WiFi/Wireless Backhaul to provide up to 10KM distance and 90Mbps throughput. It operates at 5GHz Frequency band and complies with IEEE802.11n at a 300Mbps data rate.

Not only can it act as the Wireless Backhaul, WLO-15802N equips with CPE and AP mode, which requested by WISP most of time. By integrating Bandwidth management, QOS features, WISP can easily control the upstream and downstream bandwidth by the cost end users pay.

Equips with robust Die Cast housing and IP68 rated waterproof, WLO-15802N extremely satisfy WISP, Telecom Operator, SMB / Enterprise's demands on any kind of tough Outdoor Wireless application.

General Features

• IEEE 802.11n draft 2.0 compliance in 2Tx/2Rx design
• Support IEEE 802.11n and 802.11a
• Operates in the 5GHz ISM band
• Enables bandwidth of up to 300Mbps(Tx) , 300Mbps (Rx) link rate
• Over load current protection
• Wide Range Voltage support (12-68VDC)
• Integragted Power over Ethernet (PoE)
• IP68 Rated Weather-Proof Housing, M-13 RJ45 and N-Type Connector

Wireless Features

• Number of ESSID (Virtual AP): 7
• Number of associated clients per AP: 32
• Setting for max number associated clients
• Number of Max. WDS Setting: 4
• Setting for 802.11a/n mix or 802.11a only
• Setting for transmission speed, Dynamic Wireless Re-transmission
• Channel Selection: Manual or Auto
• Transmission Power Control: 1~100%
• IEEE802.11h – PTC and DFS
• IEEE802.11d – Multi country roaming
• Channel Bandwidth Seeting: 20MHz or 20/40MHz
• Wireless Site Survey
• Operation Modes: AP Mode (AP / AP+WDS) , WDS Mode (Bridge / Repeater) , CPE Mode (Router / client), Universal Repeater + Client Bridge Mode
• IEEE802.11f IAPP: to facilitable faster roaming for the stations among different APs nearby
• IEEE 802.11i Preauth (PMKSA Cache )
• HT Tx/Rx Stream selection: 1 or 2
• A-MSDU and A-MPDU support
• Maximal MPDU density for TX aggregation setting
• Short Slot support
• RTS Threshold and Fragment Threshold support

Networking

• Support Static IP, Dynamic IP(DHCP Client) and PPPoE on WAN Connection
• Support VPN Pass Throughput ( PPTP , IPSec , L2TP )
• PPPoE Reconnect: Always on , On demand, Manual
• MAC Cloning
• DHCP Server
• 802.3 Bridging
• DHCP Server ( for CPE Mode and Client Bridge Mode )
• Masquerading (NAT) (for CPE Mode)
• Proxy DNS
• Dynamic DNS
• NTP Client
• Virtual DMZ
• Virtual Server (Port Forwarding)
• Support MAC Filter
• Support IP Filter
• Bandwidth traffic Shaping

Wireless Security

• Layer 2 User Isolation
• Layer 2 AP Isolation
• Blocks client to client discovery within a specified VLAN
• WEP 64/ 128 Bits
• EAP-TLS + Dynamic WEP
• EAP-TTLS + Dynamic WEP
• PEAP/ MS-PEAP + Dynamic WEP
• WPA (PSK +TKIP)
• WPA (802.1x certification + TKIP)
• 802.11i WPA2 (PSK + CCMP/ AES)
• 802.11i WPA2 (802.1x certification + CCMP/ AES)
• Setting for TKIP/ CCMP/ AES key’s refreshing period
• Hidden ESSID support
• Setting for "Deny ANY" connection request
• MAC Address filtering (MAC ACL)
• No. of registered RADIUS servers: 1
• VLAN assignment on BSSID

Quality of Service

• Download and Upload traffic control
• Packet classifications via DSCP (Differentiated Services Code Point)
• Control Policy by IP/IP Ranges/ MAC/ Service
• Layer-7 Protocol Support
• Traffic Analysis and Statistics
• No. of Max. Policy setting: 10
• DiffServ/ TOS
• IEEE802.11p/ COS
• IEEE 802.11Q Tag VLAN priority control
• IEEE802.11e WMM

Management

• Web-Based management & firmware upgrade
• Reset to factory default
• Profile Configuration Backup and Restore
• Remote Link Test – Display connect statistics
• Full Statistics and Status Reporting
• NTP Time Synchronization
• Event Log
• Support SNMP v1, v2c, v3, MIBII
• SNMP Traps to a list of IP address
• CLI access via Telnet and SSH
• Administrative Access: HTTP and HTTPS
• UPnP (Universal Plug and Play)

Specifications

Wireless

Standard

• IEEE 802.11n
• IEEE 802.11a
• IEEE 802.3u 100Base-TX Fast Ethernet
• IEEE802.11f
• IEEE802.11i
• IEEE802.11d

Frequency Band

• IEEE802.11a:
  • 5.15~5.35 & 5.725~ 5.825 GHz for US
  • 4.9~5.25 GHz for Japan
  • 5.15~5.35 & 5.47~5.725 GHz for ETSI
• IEEE802.11n :
  • 5.15~5.35 & 5.725~ 5.825 GHz for US
  • 4.9~5.25 GHz for Japan
  • 5.15~5.35 & 5.47~5.725 GHz for ETSI

Channel Spacing

• IEEE802.11a: 20MHz
• IEEE802.11n: 20/40MHz

Operating Channels

• IEEE802.11a / IEEE802.11n:
• US: 12 (Ch:36,40,44,48,52,56,60,64,149,153,157, 161)
• Japan: 4 (Ch:34,38,42,46) ETSI:19(Ch:36,40,44,48,52,56,60,64,100,104,108, 112,116,120,124,128,132,136,140)

Modulation

• IEEE802.11a: OFDM (64QAM, QAM, QPSK, BPSK)
• IEEE802.11n: BPSK, QPSK, 16QAM, 64QAM

Data Rate

• IEEE802.11a: 6/9/12/18/24/36/48/54Mbps (auto sensing)
• IEEE802.11n(draft 2.0) : 300Mbps(Tx), 300Mbps(Rx)

Security

• WEP (64/128Bit)
• WPA / WPA2
• Hidden ESSID
• User Isolation
• MAC Address Filter

Receive Sensitivity

• -97dBm

Output Power

• 27dBm (500mW)

Operating Mode

• Pure AP
• AP / WDS
• Pure WDS Mode (Repeater/Bridge)
• CPE Mode (Router Client )
• Universal Repeater

Hardware

• Processor:Ralink 2880 + 2850 (5G RF)
• Flash: 4MB
• SDRAM: 32MB
• LED Indication: Power, LAN ,Wireless
• Antenna Connector: 2 x N-Type
• Ethernet: 10/100BASE-TX auto-negotiation Ethernet port x 1 (RJ-45 connector), Power over Ethernet

Environment

• Operating Temperature: -30 °C ~ 60 °C
• Storage Temperature: -30 °C ~ 85 °C
• Humidity: 100%(non condensing)

Power Supply

• AC Input : 110 – 220V AC Power
• DC Output : 48 VDC, 0.4A input (POE Injector)

Power Consumption

• 9W

Waterproof

• IP68 Certificated, Die-Cast aluminum Enclosure

Mounting

• Wall Mount, Pole Mount

Dimensions

• 157 (L) x 96 (W) x 45 (H) mm

Weight

• 0.68Kg

Certificate

• CE, FCC
