Proxim ORiNOCO AP8000 Indoor WiFi Access Point
Proxim Wireless is increasing the performance and reducing the complexity of 802.11n networks with the introduction of its ORiNOCO 802.11n product line. Proxim’s ORiNOCO AP-8000 and ORiNOCO AP-800 802.11n access points provide the industry’s highest performance, easiest to use, and most cost-effective 802.11n networks for enterprises of all sizes.
With the ORiNOCO 802.11n product family, Proxim has designed the first complete 802.11n solution that overcomes the deployment challenges faced by competing products. The result is an 802.11n solution that enables customers to quickly, easily and cost-effectively deploy the highest-performance 802.11n network available.
Higher Performance than Existing Wired LANs/WLANs
Proxim’s ORiNOCO 802.11n products enable enterprises of all size to finally unwire the wired LAN by providing greater performance than existing Ethernet networks.
- Over 100 Mbps throughput for greater performance than wired LANs
- 5x the throughput of existing WLANs
- High reliability for quad play applications
- The only solution to provide dual 2.4 Ghz and dual 5Ghz operation
- The first solution to provide support for the entire 5 Ghz spectrum worldwide, providing the frequencies needed to resolve interference issues
Greatest Ease of Use
Superior engineering make Proxim’s ORiNOCO 802.11n products the first to overcome the deployment challenges faced by competing products.
- Backward compatible with all existing Wi-Fi 802.11a/b/g and 802.11b/g clients
- When deployed, existing access points can simply be swapped out and replaced without running additional ethernet cables that are required by competing 802.11n access points
- Proxim’s 802.11n solution provides 2 times the range of standard 802.11a/b/g access points to ensure optimal coverage and enhanced signal strength to all wireless clients in the office so users can truly become untethered
Industry-Leading ROI
Proxim’s 802.11n solution drastically reduces the cost of 802.11n deployments by eliminating the need for forklift upgrades, additional wiring, or additional network planning.
- ORiNOCO 802.11n access points are the only APs on the market that are completely 802.3af compliant in all configurations, which avoids the cost of additional wiring as required by 802.3at compliant APs
- Though some competitors claim 802.3af compliance, they are only compliant in limited configurations – which means that most configurations will require an additional wire (additional cost) to power each AP
- By enabling ORiNOCO 802.11n access points to be simply swapped out in the location of existing APs, Proxim reduces the amount of time and cost spent upgrading networks to 802.11n

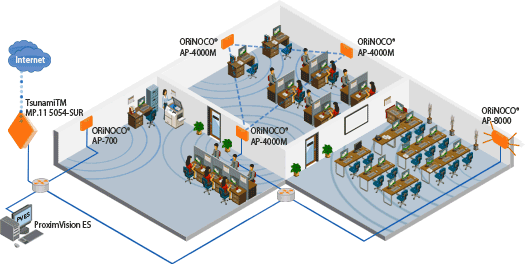

Compatibility with Proxim’s End-to-End Portfolio
As always, Proxim leverages existing technology to ensure that all products – from WLANs andWi-Fi Mesh to WiMAX to Point-to-Point – work together from end to end.
- All ORiNOCO 802.11n products operate seamlessly with existing Proxim products, making it an easy addition to your end-to-end wireless network
- All ORiNOCO 802.11n products are easily managed via ProximVision ES, the central network management console that manages existing Proxim end-to-end products
Blazing Speed
The first 802.11n solution to achieve greater than 300Mbps throughput performance, with dual-radio throughput rates of 320Mbps
Best In Class Performance
ORiNOCO® AP-8000 and AP-800 802.11n access points offer higher performance than existing wired and wireless LANs while avoiding the costly controller upgrades, deployment challenges
Flexible Channel Planning Worldwide
Provides Flexible Channel Planning support for 2.4 GHz, 5.15-6.08GHz unlicensed frequency bands. Support Dynamic Frequency Selection (DFS) globally in all 5GHz bands
Secure and Reliable
Enhanced security with AES encryption and robust RADIUS accounting along with IEEE 802.11e quality of service support providing high reliability for quad play applications
Centralized Management
ProximVision ES centralized network management system now supports ORiNOCO®AP-8000 & AP-800 Products, providing rapid network deployment and mobile configuration
No Upgrade Hassles
Seamlessly integrates with ORiNOCO® legacy products to interoperate even in a/b/g modes
Description
9422-XX ORiNOCO 802.11n dual radio access point with 2 integrated 802.11a/b/g/n radios
Radio and Transmsission
RADIO
- Dual Radio Access Point with 2 802.11a/b/g/n radios
- 3x3 MIMO
Radio Configurations
- 2 x 802.11b/g/n
- 1 x 802.11b/g/n and 1 x 802.11a/n
- 2 x 802.11a/n
Modulation Method
- MSC0 - MSC15 for 802.11n (6.5Mbps - 300Mbps)
- BPSK, QPSK, 16-QAM and 64-QAM for 802.11a and 802.11g (6Mbps-54Mbps)
- DSSS for 802.11b (1Mbps-11Mbps)
- Frequency Band:
- 5.15 - 6.08 GHz
- 2.4 - 2.483 GHz
Tranmit Method
- 802.11n: 19.5dBm
- 802.11a: 17dBm
- 802.11bg: 16.5dBm
Interfaces
- Antenna Connector: 6 RP-SMA connectors (3 per radio)
- Antennas: 6 Dual-Band reverse SMA connector Omni Antenna with 3dBi gain
- Ethernet: Auto-sensing 10/100/1000BASE-T Ethernet
Physical
- Dimensions Unpackaged: 11 5/16 x 7 x 1 3/4 in (287.34 x 177.8 x 44.75 mm)
- Weight Unpackaged 1.5 lbs (.7 kg)
Environmental
- Temperature: 0° to 55°C (Operating)
- -20° to 75°C (Storage)
- Humidity: Max 95% relative humidity (non-condensing)
- Electrical
- Power Supply (Optional: 110/220 VAC, 50/60 Hz (input),
- 5V 3A (output) power adapter
- (OPT) Power Supply: IEEE 802.3af Active Ethernet Support (Purchased separately)
- POE: 802.3af
- LEDS: Four indicators on the top panel indicate power, wireless traffic, Ethernet traffic, and error conditions.
Management
- Local: RS-232 Serial Port; DB9 Female
- Remote: SNMP v1; SNMP v2c ; DHCP; Telnet;HTTP; TFTP; SNTP; Scan & Change; BootP; Syslog
- SNMP: SSH, SNMPv2, HTTPS
- MTBF and Warranty: 43,800 hours ; One year parts and labor
Package Contents
- (1) AP-800 802.11n access point
- (1) Wall/ceiling mount kit
- (1) Cable security attachment
- (6) 2.4GHz/5GHz omni-directional antennas with reverse SMA connectors
- (1) Installation CD-Rom with Software and Documentation
- (1) Quick Install Guide
