QuWireless QuSpot for RUTX11 Integrated Multi-band LTE Omni, WiFi Omni, GPS and Bluetooth Antenna All In One (AX11S)

0 Based on 0 ratings.
Write a Review
SKU:AX11S
28/11/2024 £113.65exc. VAT
£136.38 inc. VAT
Qty:
Usually ships in 1 to 2 weeks
Accessories, Add-Ons, and Extras

Need Trade Pricing?

If you are a Wireless or comms reseller and are interested in selling 4Gon products as part of your business offering, you can apply to become an authorised reseller. Once accepted, you will have access to reseller pricing. Apply now

Documents and Manuals

  QuWireless QuSpot AX11S Datasheet (PDF)

Key Features
  • Dual SIM
  • Outdoor use IP67
  • Easy to install
  • Product Details
  • Reviews

QuWireless QuSpot for RUTX11 Integrated Multi-band LTE Omni, WiFi Omni, GPS and Bluetooth Antenna All In One (AX11S)

The QuWireless AX11S is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It has embedded also omni Wi-Fi dualband 2.4 & 5 GHz omni antenna and GPS antenna and Bluetooth antenna. If you use RUTx11 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.

QuWireless AX11S Key Features

  • All antennas and router integrated into one enclosure
  • Outdoor use - works in any weather condition IP67
  • Passive PoE support
  • Maximise signal
  • Easy to install
  • Dual SIM - significantly reduce roaming costs

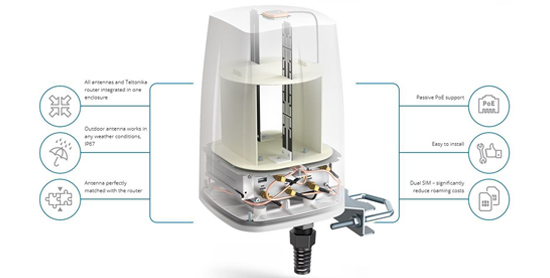

QuSpot Diagram

QuWireless AX11S Technical Specifications

LTE Specification

  • Frequency:
    - 0.694-0.96 GHz
    - 1.7 - 2.2 GHz - 2.2
    - 2.7 GHz
  • Gain:
    - 2 dBi
    - 2 dBi
    - 4 dBi
  • VSWR:
    - <1.70, max <2.00
    - <1.60, max <2.00
    - <1.60, max <2.00
  • Beamwidth:
    - 360°/35° +/- 5°
    - 360°/35° +/- 5°
    - 360°/35° +/- 5°
  • Polarisation: Vertical
  • Impedance: 50 Ω

WiFi Specification

  • Frequency:
    - 2.40-2.50 GHz
    - 4.70 - 6.00 GHz
  • Gain:
    - 6 dBi
    - 7 dBi
  • VSWR:
    - <1.70, max <2.00
    - <1.70, max <2.00
  • Beamwidth:
    - 360°/25° +/- 5°
    - 360°/25° +/- 5°
  • Polarisation: Vertical
  • Impedance: 50 Ω

Mechanical Specification

  • Materials: ABS, aluminum, PTFE
  • Ingress Protection: IP67
  • Dimensions:
    - 160 x 160 x 240 mm
    - 6.3 x 6.3 x 9.45 inch
  • Weight:
    - 1.5 kg
    - 3.31 lbs
  • Operating Temperature:
    - From -40°C to 75°C
    - From -40°F to 167°F

Specifications Tab
