RF Elements NanoBracket Universal NanoStation Mount (RFE-NB)
Holder for NanoStation and other popular CPEs
The NanoBracket Universal is a holder that is designed for the installation of the most popular CPE devices on the market.
The NanoBracket is an original design and development of RF elements and the NanoBracket Universal is made of durable UV-stabilized ABS plastic. This allows easy and quick installation of the device on a wall, pole (max 52mm) or a console.
Installation of the NanoBracket Universal is really simple. The holder is mounted in the closest possible position to the center of gravity of the mounted device which makes the construction more stable. The color of the holder matches perfectly with the color of the NanoStation and StationBox, therefore the construction looks really compact.
Suitable for:
- Body A
- UBNT NanoStation M5
- UBNT NanoStation M2
- UBNT NanoStation 5
- UBNT NanoStation 2
- AirLive® Airmax 5AirLive®
- Airmax 2
- RF elements StationBox
- Body B
- UBNT NanoStation 5 LOCO
- UBNT NanoStation 2 LOCO
- UBNT NanoStation Loco M5
- UBNT NanoStation Loco M2
- UBNT NanoStation M900 Loco
- RF elements StationBox® Mikro
- Product Model Number: RFE-NB
Installation
Installation of NanoBracket’s Body to the Device
Firstly, insert NanoBracket’s ball hinge (4) into the hole of the NanoBracket’s holder (6). Choose the right Body (Body A (1) or Body B (2)) according to the type of Device you intend to mount (see compatibility). Put one half of NanoBracket’s Body on holds that are placed on Device as described on the picture. Put flat end of the “ball” (4) to free space between the body of Device and body of NanoBracket. Cover it all by the second half of NanoBracket’s Body in order to assure a secure connection of the Device and both parts of NanoBracket’s Body. Secure both parts of Body by using screws. Please follow pictures for different alignment of Body parts and the Device when using Body A and when using Body B.

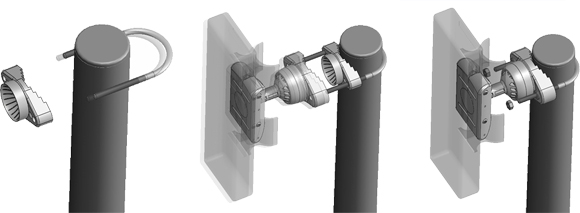

Installation of NanoBracket onto a Console or Pole
To begin with, put U-bolt on pole or console and insert the part of the NanoBracket called “bearing (base) for ball” into it. Consequently, put the NanoStation with mounted body of NanoBracket onto the U-bolt.The whole unit is secured by using nuts under which we put saddles. In the meantime screw the nut only temporarily in order to be able to set the NanoStation in required direction. When the NanoStation is set you can tighten the nuts fully. Now, installation of the NanoStation on pole or console by using mounting kit NanoBracket is completed.

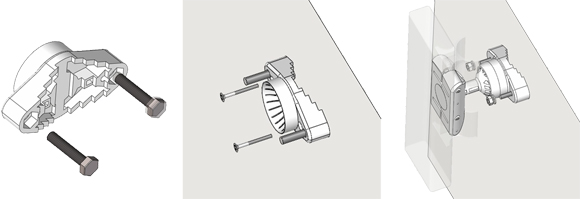

Installation of NanoBracket onto a Wall
Firstly, put the M6 screws into the holes in the NanoBracket Base (5). Put wall plugs to the wall and screw the Base (5) tight to the wall by using screws. Consequently, put the Device with mounted NanoBracket on it onto the screws. The whole is secured by using nuts under which we put saddles. In the meantime screw the nut only temporarily in order to be able to set the Device in required direction. When the Device is set you can tighten the nuts fully. Now, installation of the Device on wall by using mounting kit NanoBracket is completed.
Note
There are many types of walls - concrete, brick, sandwich, plasterboard etc. We strongly recommend to use appropriate wall plugs and screws for correct installation of the bracket. Please contact your local store for best suitable wall plug and matching screws.
Technical Specifications
- Dimensions (L×W×H): Box - 60 × 60 × 185 mm
- Weight: Box - 246 g
