Ruckus Zone Flex 7025 Wired Wall Switch

The First High Performance 802.11n Integrated Wired/Wireless Wall Switch

The ZoneFlex 7025 from Ruckus is the industry’s first wired and wireless wall switch that integrates high-speed 802.11n Wi-Fi into an ultra-sleek, low-profile design that can be quickly and discretely installed in a standard wall junction box.

Ideal for offering converged services within hotel guest rooms and university dormitories, the ZoneFlex 7025 pro­vides an easy way to offer multiple connections into a single room without multiple cables.

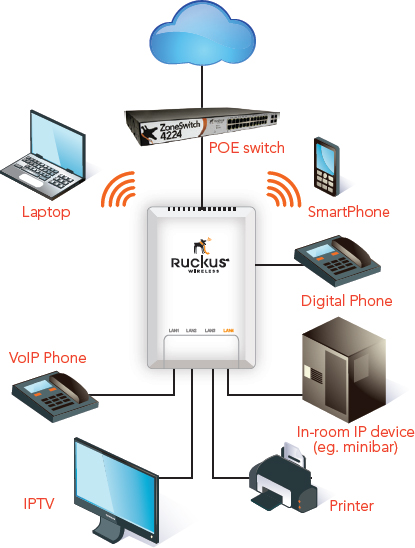

The ZoneFlex 7025 delivers high performance 2.4GHz 802.11n wireless coverage and four wired Ethernet access connections that can be used to support  a range of in-room IP device and user connectivity options.  An additional pass-through port allows connectivity for digital phones that requires native access to an in-house PBX system.

An IEEE 802.3af-compliant POE port, up to 15.4 watts, powers devices such as IP telephones directly from the wall switch. The ZoneFlex 7025 requires only a single POE cable drop thereby reducing cabling, switch ports, and power sourcing equipment.

The ZoneFlex 7025 can be deployed as a standalone device or centrally managed by the Ruckus ZoneDirector or FlexMaster Wi-Fi system management platform.

With the ability to broadcast up to eight SSIDs per device, the ZoneFlex 7025 supports port-based VLANs. Authentication options include: 802.1x, MAC-based, captive portal, LDAP, RADIUS, Active Directory and through an internal user database.

BENEFITS

 Ubiquitous connectivity

 In-room device provides complete wired and wireless connectivity for a wide range of devices and applications

Converged IP services

 Multiple SSIDs, port-based VLANs and robust authentication options make the ZoneFlex 7025 idea for supporting concurrent IP-based ser­vices such as VoIP, IPTV, high-speed Internet access and in-room device connectivity

Standalone or centrally managed

 The ZoneFlex 7025 can be deployed in standalone mode or centrally managed by the Ruckus ZoneDirector or Ruckus FlexMaster systems

Superior, fast Wi-Fi connectivity

802.11n system delivers ultra high-speed connectivity and extends coverage in-room and beyond

Flexible deployment options

 The ZoneFlex 7025 requires a signle POE cable drop, reducing cabling, switch ports and power sourcing equipment

Easy installation

Installs into any standard network wall jack, offering two Ethernet uplink options: RJ-45 connector and  a 110 punch down block

Sleek, inconspicuous compact form factor for best aesthetics

 Low profile design and front port access eliminates unslightly cabling and disruptive furniture placement

Integrated POE support eliminates more wires

 Provides POE out to power devices such as IP-based VoIP phones elimi­nating the need for more power chords that clutter the environment

Plug and play for existing digital phones

 Passthrough port allows native connectivity for existing digital phones

Ruckus 7025 Wired Wall Switch Technical Specifications

Power

•  POE 802.3af/802.3at 48VDC

Power Draw

• Without POE Out: 7W Max
• With maximum POE output (15.4W): 23W Max

Physical Size

• 85mm(L), 85mm(W), 56mm(H)

Weight

• 140g

Physcial Ports

• 4 10/100Mbps, auto MDX, auto sens­ing, RJ-45 Ethernet access ports
• Port 1 of the access ports provides 802.3af Class0/2 POE power
• 1 10/100Mpbs, auto MDX, auto sens­ing, RJ-45 or 110 punch down block Ethernet access port
• 1 RJ-45 pass-through port

Environmental

• Operating temperature: 0-40° C Conditions
• Operating humidity: 15-95% non-condensing

Automatic Traffic Classification

• Automatic prioritization of VoIP  and video traffic

VLAN Support 802.1Q

•  Port-based

VLAN classes Of Service

• Voice
• Video
• Best effort
• Background

Software Queue

• Four (4) per station 802.11e Supported

Configuration

• Web user interface, CLI, Telnet, SSH HTTP(s), SNMP via ZoneDirector, HTTPs/XML/SOAP via FlexMaster
• LAN, wireless and associated sta­tions (accessible via WEB UI)
• Auto AP Software FTP or TFTP, remote auto upgrade updates available

Standards

•  IEEE 802.11b/g/n 2.4GHz

Supported Data Rates

• 802.11n: 6.5Mbps – 150Mbps
• 802.11b: 1, 2, 5.5 and 11Mbps
• 802.11g: 6, 9, 12, 18, 24, 36, 48 and 54Mbps

Radio Chains

• 1 x 1

Spatial Streams

•   1

RF Power Output

• 16dBm

Frequency Band

• 2.4 - 2.484GHz

Operating Channels

• EU (ETSI X30): 1-13

Channel availability is country dependent according to the local regulations

Wireless Security

•  WEP, WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i
• Authentication via 802.1X with ZoneDi­rector, local authentication database, support for RADIUS, LDAP, and Active Directory

Certifications

• US, Canada, EU, China, India, Australia, New Zealand, Malaysia, Thailand, Singa­pore, Indonesia, Philippines
