Ruckus ZoneFlex 7731 WiFi Access Point
Wire-like throughput over the air
Based on the 802.11n standard, the Ruckus ZoneFlex 7731 WiFi Access Point supports data rates up to 300 Mbps. With Ruckus’ purpose-built directional antenna, the Ruckus ZoneFlex 7731 WiFi Access Point supports up to 190 Mbps at 1.5 kilometers, and offers performance up to 50 Mbps at 10 km (LoS).
Easy installation and pairing
Lightweight and designed with simple and flexible mounting options, the Ruckus ZoneFlex 7731 WiFi Access Point enables installers to deploy the wireless bridges effortlessly.
Simple positioning and aiming
With a 30-degree, 3dB beamwidth antenna and sophisticated LED-based aiming software, aiming and optimizing performance has never been easier. And with Auto Channel Selection and Dynamic Channel Management, Ruckus ZoneFlex 7731 WiFi Access Point finds and selects the best performing channel automatically.
Secure and scalable
AES-based, the wireless bridge link is secure and can scale to support multiple networks segmented by VLANs.
Centrally managed network
The Ruckus Ruckus ZoneFlex 7731 WiFi Access Point bridge can be fully managed by FlexMaster and supports standard-based SNMP and HTTPS/ XML/SOAP allowing operators to easily configure and manage the bridges as part of the larger network.
Unmatched ROI
The wireless link offers much higher data throughput rates than T1/E1 or xDSL lines at only a fraction of the fixed line installation cost and without the recurring leased line cost. The Ruckus ZoneFlex 7731 WiFi Access Point is also an ideal option for backhauling 3G networks.
Environmentally-friendly design
The internal dual polarized antenna not only does away the need for installing an external antenna, further simplifying the installation procedure, but also offers an aesthetically pleasing look and feel.
Outdoor Wireless Bridge

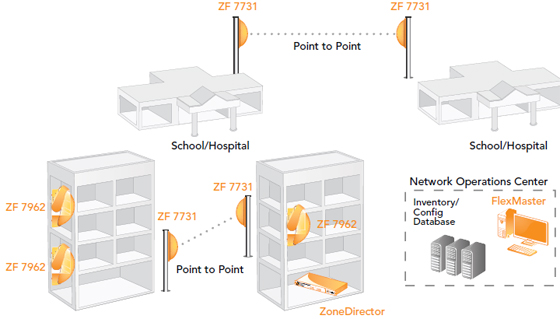

The Ruckus Ruckus ZoneFlex 7731 WiFi Access Point is the fi rst centrally-managed, outdoor point-to-point and point-to-multipoint bridge that unleashes the promise of 5GHz 802.11n, delivering unparalleled throughput. Backhaul throughput of over 100 Mbps opens opportunities to new business models, bridging remote locations and providing broadband services to locations not reachable before, in an affordable way.
Designed for harsh outdoor conditions, the Ruckus Ruckus ZoneFlex 7731 WiFi Access Point is perfect for service providers looking to easily extend branded broadband services, back-haul 3G networks, offload data traffic from 3G networks, deploy multimedia hotspots, or offer wireless broadband services where fixed line access is limited.
The Ruckus ZoneFlex 7731 WiFi Access Point is also ideal for hotels, schools, warehouses and other enterprises looking to extend managed wireless LANs (WLANs) across remote buildings and where Ethernet cabling is not possible.
Auto-pairing of wireless bridges, in addition to fl exible mounting options, forgiving antenna pattern, and an easy-to-use aiming software, allows installers to deploy and optimize a wireless link in a short time, significantly increasing productivity and reducing deployment costs.
The Ruckus ZoneFlex 7731 WiFi Access Point can be managed through its own WebGUI or is centrally managed by Ruckus FlexMaster, providing a complete view of the entire wireless network including ZoneDirector and other indoor and outdoor ZoneFlex APs.
Wireless Broadband Access
The Ruckus ZoneFlex 7731 WiFi Access Point allows providers to reliably deliver new wireless broadband services in areas where fixed line access is non-existent or cost-prohibitive.
Backup Link for Disaster recovery
The Ruckus ZoneFlex 7731 WiFi Access Point serves as a high performance back up link for enterprise disaster recovery.
Video surveillance
Ruckus ZoneFlex 7731 WiFi Access Point offers reliable wireless streaming of surveillance video back to a central post.
Ruckus ZoneFlex 7731 WiFi Access Point Technical Specifications
Configuration
- Web user interface, CLI (Telnet), SSH HTTP/S/XML/SOAP, SNMP statistics interface through FlexMaster
Standards
- IEEE 802.11a/n
- 5GHz operation
Supported Data Rates
- 802.11n: 6.5Mbps – 130Mbps (20MHz)
- 6.5Mbps – 300Mbps (40MHz)
- 802.11a: 54, 48, 36, 24, 18, 12, 9 and 6Mbps
Modulation
Radio Chains
Spatial Streams
RF Power output
Channel
Frequency Band
- IEEE 802.11n: 5.15 – 5.875 GHz
- IEEE 802.11a: 5.15 – 5.875 GHz
Operating Channels
- 5GHz channels: Country dependent for the following channel ranges: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 149, 153, 157, 161, 165, 169, 173
Wireless Security
Power
- Power over Ethernet and 12VDC
Power Draw
- 7W without heating
- 12W with heating
Antenna
- 14 dBi internal directional antenna
- 30 degree 3dB beamwidth
- Two external N-Type antenna connectors
Ethernet Ports 1 port, auto MDX, auto-sensing
- 10/100/1000 Mbps, RJ-45
- Power over Ethernet (802.3af)
Environmental
Conditions
- Operating air temperature: -40°C – 65° C (-40°F – 149°F)
Target UDP Protocol
Maximum Link
Point-to-Multiboot
- 30 degrees of coverage from the root bridge with internal antenna
Automatic Traffic Classification
- Up to 190 Mbps at 1.5 km/1 mi
- Up to 165 Mbps at 3 km/2 mi
- Up to 100 Mbps at 5 km/3 mi
- Up to 50 Mbps at 10 km/6 mi
Automatic type of service tagging for multicast video and voice packets
Automatic prioritization of VoIP and video traffic
Support for 802.1p
- VLAN Support 802.1Q passthrough
- Management VLAN
Classes Of Service
- Voice, video, best effort and background
- 802.1p - BASED Supported Classification
- Heuristic Supported Classification
Physical Size
- 27.1 cm (L), 17.2 cm (W), 13.15 cm (H)
Weight
- 877 grams (1.93 lbs.) (no external mounting hardware)
Certification
- U.S., Europe, Canada, Australia,
- China, India, New Zealand, Philippines,
- Taiwan, Thailand, Vietnam
- WEEE/RoHS compliance
