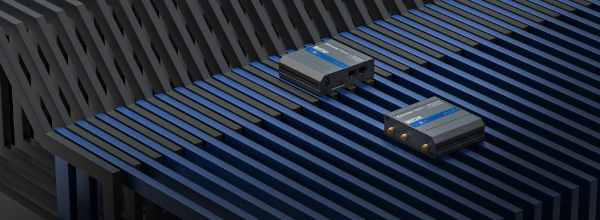

Teltonika RUT241 eSIM™ (RUT241 eSIM™)
The Teltonika RUT241 eSIM™ is an industrial-grade cellular router featuring LTE Cat 4 and an eSIM™ based on SGP.22 pull-based consumer architecture. This compact router supports both a physical SIM card and up to seven eSIM™ profiles, all managed through WebUI and RMS. It also includes a Trusted Platform Module (TPM) for enhanced security. With automatic WAN failover and dual Ethernet ports, the RUT241 ensures reliable connectivity, making it an ideal solution for M2M and IoT applications.
Teltonika RUT241 eSIM™ Key Features:
- LTE Cat 4 and eSIM™ Support
- Dual SIM Capabilities
- Enhanced Security
- Reliable Connectivity
- 4G LTE Cat 4 with speeds up to 150 Mbps.
- WAN Failover: Automatically switches to available backup connection.
- Wireless Access Point with Hotspot functionality.
- Compact size, easy integration.
- Digital Input/Output for remote monitoring and control.
- Teltonika Remote Management System compatible (RMS credits sold separately).
The Teltonika RUT241 is the modified version of their all-time bestseller RUT240 that inherited its' best features, including industrial design, compact size, multiple connection interfaces, and compatibility with RMS.
Equipped with 4G LTE, Wi-Fi, and two Ethernet ports, this router offers unstoppable connection continuity with a backup through automatic failover. Digital Inputs and Outputs coupled with advanced RutOS software enable solution automation scenarios. The RUT241 is an excellent fit in various IoT and M2M solutions that require easy setup, reliable network, and remote accessibility.
The Teltonika RUT241 is a compact 4G LTE Cat 4 router offering speeds up to 150 Mbps, with automatic WAN failover for backup connection reliability. It features a wireless access point with hotspot functionality and includes digital input/output for remote monitoring and control. The device is easy to integrate and is compatible with the Teltonika Remote Management System (RMS).
Teltonika RUT241 - Technical Specifications
Mobile
- Mobile module: 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
- Status: Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID
- Bridge:Direct connection (bridge) between mobile ISP and device on LAN
- Passthrough: Router assigns its mobile WAN IP address to another device on LAN
- APN: Auto APN
- SMS, SMS status, SMS configuration, Send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, Scheduled SMS, SMS autoreply, SMPP
- Black/White list: Operator black/white list
- Multiple PDN: Possibility to use different PDNs for multiple network access and services
- Band management: Band lock, Used band status display
- Wireless: IEEE 802.11b/g/n, Access Point (AP), Station (STA)
- WiFi security: WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation
- SSID: SSID stealth mode and access control based on MAC address
- WiFi users: Up to 50 simultaneous connections
- Hotspot: Captive portal (Hotspot), internal/external Radius server, built in customisable landing page
Ethernet
- WAN: 1 x WAN port (can be configured to LAN) 10/100 Mbps, comply IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
- LAN: 1 x LAN port, 10/100 Mbps, comply IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
Network
- Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, RIPng, OSPF6)
- Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet client, SNMP, MQTT, Wake On Lan (WOL)
- VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
- Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
- Firewall: Port forward, traffic rules, custom rules
- DHCP: Static and dynamic IP allocation, DHCP Relay, Relayd
- QoS: Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
- DDNS: Supported >25 service providers, others can be configured manually
- Network backup: VRRP, Mobile, Wired and WiFi WAN options, each of which can be used as backup, using automatic Failover
- Load balancing: Balance your internet traffic over multiple WAN connections
- SSHFS (optional): Possibility to mount remote file system via SSH protocol (not available in standard FW)
Security
- Authentication: Pre-shared key, digital certificates, X.509 certificates
- Firewall: Pre-configured firewall rules can be enabled via web-ui, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
- Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention ( SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
- VLAN: Port and tag based VLAN separation
- Mobile quota control: Set up custom data limits for the SIM card
- WEB filter: Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
- Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter
VPN
- OpenVPN: Multiple clients and server can be running simultaneously, 12 encryption methods
- OpenVPN Encryption: DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
- IPsec: IKEv1, IKEv2, supports up to 4 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256)
- GRE: GRE tunnel
- PPTP, L2TP: Client/Server services can run simultaneously
- Stunnel: Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the programs' code
- SSTP: SSTP client instance support
- ZeroTier: ZeroTier VPN
- WireGuard: WireGuard VPN client and server support
MODBUS TCP Slave
- ID filtering: Respond to one ID in range [1;255] or any
- Allow Remote Access: Allow access through WAN
- Custom registers: MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality
MODBUS TCP Master
- Supported functions: 01, 02, 03, 04, 05, 06, 15, 16
- Supported data formats: 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)
- MODBUS data to server
- Protocol: HTTP(S), MQTT, Azure MQTT
MQTT Gateway
- MQTT gateway: Allows sending commands and receiving data from Modbus Master through MQTT broker
Monitoring & Management
- WEB UI: HTTP/HTTPS, status, configuration, FW update, CLI ,troubleshoot, event log, system log, kernel log
- FOTA: Firmware update from sever, automatic notification
- SSH: SSH (v1, v2)
- SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET
- Call: Reboot, Status, WiFi on/off, Mobile data on/off, Output on/off
- TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
- MQTT: MQTT Broker, MQTT publisher
- SNMP: SNMP (v1, v2, v3), SNMP trap
- JSON-RPC: Management API over HTTP/HTTPS
- MODBUS: MODBUS TCP status/control
- RMS: Teltonika Remote Management System (RMS)
IoT platforms
- Cloud of things: Allows monitoring of: Device data, Mobile data, Network info, Availability
- ThingWorx: Allows monitoring of: WAN Type, WAN IP Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
- Cumulocity: Allows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP
- Azure IoT Hub: Can send device IP, Number of bytes send/received/ 3G connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, Sim State, PIN state, GSM signal, WCDMA RSCP WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server
System Characteristics
- CPU: Mediatek, MT7628, 580 MHz
- RAM: 128 MB, DDR2
- FLASH storage: 16 MB, SPI Flash
Firmware / Configuration
- WEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup, restore point
- FOTA: Update FW/configuration from server
- RMS: Update FW/configuration for multiple devices
- Keep settings: Update FW without losing current configuration
Firmware Customisation
- Operating system: RutOS (OpenWrt based Linux OS)
- Supported languages: Busybox shell, Lua, C, C++
- Development tools: SDK package with built environment provided
Input / Output
- Input: 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
- Output: 1 x Digital open collector output, max output 30 V, 300 mA
- Events: SMS, EMAIL, RMS
Power
- Connector: 4 pin industrial DC power socket
- Input voltage range: 9 – 30 VDC (4 pin industrial socket), reverse polarity protection, surge protection >33 VDC 10us max
- PoE (passive): Passive PoE over spare pairs (available from HW revision 0007 and batch number 0010). Possibility to power up through LAN port, not compatible with IEEE802.3af and 802.3at
- Power consumption: < 6.5 W
Physical Interfaces (Ports, LEDs, Antennas, Buttons, SIM)
- Ethernet: 2 x RJ45 ports, 10/100 Mbps
- I/Os: 1 x Digital Input, 1 x Digital Output on 4 pin power connector
- Status LEDs: 3 x Connection type status LEDs, 5 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED
- SIM: 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V, external SIM holder
- Power: 4 pin DC connector
- Antennas: 2 x SMA for LTE, 1 x RP-SMA for WiFi antenna connectors
- Reset: Reset/restore to default button
Physical Specification
- Casing material: Aluminium housing, plastic panels
- Dimensions (H x W x D): 83 x 74 x 25 mm
- Weight: 125 g
- Mounting options: Bottom and sideways DIN rail mounting slots
Operating Environment
- Operating temperature: -40ºC to 75ºC
- Operating humidity: 10% to 90% non-condensing
- Ingress Protection Rating: IP30
- MTBF: 310,000 hrs
Regulatory & Type Approvals
- Regulatory: CE/RED, UKCA, CB
- EMI Immunity
- Standards: EN 301 489-1 V2.2.3 EN 301 489-17 V3.2.4 Final draft EN 301 489-52 V1.2.0 EN 55032:2015+A1:2020 EN 55035:2017+A11:2020 EN 61000-3-3:2013+A1:2019 EN IEC 61000-3-2:2019
- ESD: EN 61000-4-2:2009
- Radiated Immunity: EN 61000-4-3:2020
- EFT: EN 61000-4-4:2012
- Surge immunity (AC Power Line): EN 61000-4-5:2014+A1:2017
- Surge immunity (Ethernet ports): EN 61000-4-6:2014
- DIP: EN IEC 61000-4-11:2020
- RF Standards: EN 300 328 V2.2.2, EN 301 511 V12.5.1, EN 301 908-1 V13.1.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.1.1
- Safety Standards: EN IEC 62311:2020, EN 50665:2017, EN IEC 62368-1:2020+A11:2020, IEC 62368-1:2018
Package Contents
- 1 x RUT241 router
- 1 x 9W UK Power Supply
- 2 x LTE antennas (swivel, SMA male)
- 1 x WiFi antenna (swivel, RP-SMA male)
- 1 x Ethernet cable (1.5 m)
- 1 x SIM Adapter kit
- 1 x RMS Flyer
- 1 x QSG (Quick Start Guide)
