TP-Link Omada Gigabit VPN Router (ER605)
The TP-Link ER605 (TL-R605) Gigabit VPN Router is a professional, secure and reliable router. With Omada SDN centralised management, you can remotely access, manage and maintain your ER605, anywhere, anytime.
Key Features
- Integrated into Omada SDN: Centralised Cloud Management and Intelligent Monitoring.
- Centralised Management: Cloud access and Omada app for convenience and easy management.
- Five Gigabit Ports: High-speed wired connectivity.
- Up to 3 WAN Ethernet Ports: 1 gigabit WAN port and 2 gigabit WAN/LAN ports with load balance raise the utilization rate of multi-line broadband.
- One USB WAN Port for Mobile Broadband: Mobile broadband via 4G/3G modem is supported for WAN backup by connecting to the USB port.
- Highly Secure VPN: Supports up to 20× LAN-to-LAN IPsec, 16× OpenVPN*, 16× L2TP, and 16× PPTP VPN connections.
- Abundant Security Features: Advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions protect your network and data.
Hassle-Free Centralised Cloud Management
100% centralised cloud management of whole network from different sites—all controlled from a single interface anywhere, anytime.
Up to Four WAN Gigabit Ports to Optimise Bandwidth Usage
Features four 802.3af/at compliant PoE+ ports, the switch supports up to 62 W total PoE power budget. Designed to use a single Ethernet cable for both data and power transmission, it offers flexible deployment for PoE-supported devices such as wireless access points, IP cameras, and IP phones, lowering infrastructure costs for small businesses.
Value-Added Features Bring Unexpected Experience
Three freely interchangeable ports that can be set to either WAN or LAN allow the router to support up to four WAN ports to satisfy various internet access requirements through one device. The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port to raise the utilisation rate of multi-line broadband.
Highly Secure VPN
ER605 supports IPSec/PPTP/L2TP VPN over IPSec/SSL protocols. With a powerful hardware design, the router supports and manages up to 20× LAN-to-LAN IPSec, 16× OpenVPN*, 16× L2TP, and 16× PPTP VPN connections. One-click auto IPSec VPN* greatly simplifies VPN configuration and facilitates network management and deployment while also securing and encrypting private site-to-site data communications traveling over the internet.

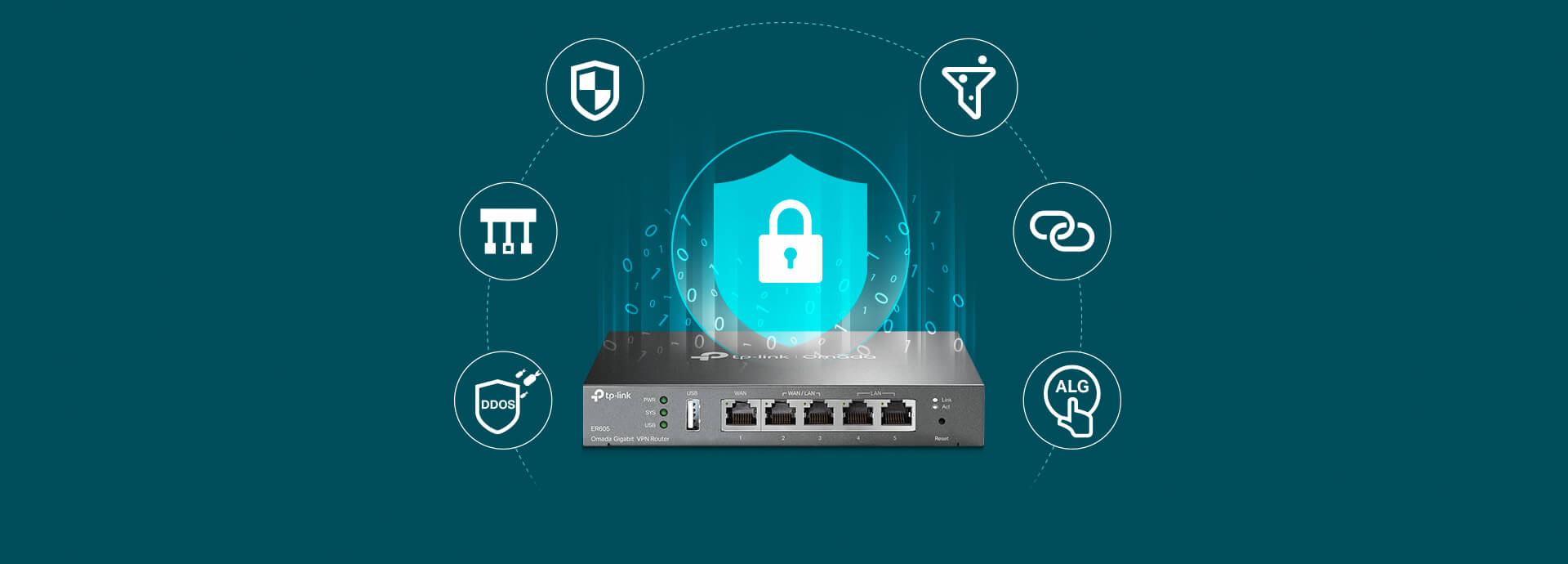

Abundant Security Features
- Powerful Firewall - Advanced firewall policies protect your network and data.
- Convenient VLAN Support - Create virtual network segments for enhanced security and simplified network management.
- DoS Defense - Automatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats.
- IP/MAC/URL Filtering - Forcefully prevent viruses and attacks from intruders.
- IP-MAC Binding - Reserves static IP assignment for clients to defend against ARP attacks and spoofing.
- One-Click ALG Activation - One-Click ALG Activation for applications such as FTP, H323, SIP, IPsec and PPTP.
Internet Access Management Strategy
Standardise users’ online behavior and easily specify the internet access rights and strategies of employee via IP/MAC/URL Filtering and Access Control List (ACL). Captive Portal authentication facilitates network resource control by capturing, authenticating, and classifying user access. Appropriate network resources can also be allocated for particular users or guests.
Manage Your Network Anywhere, Anytime
Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
SDN-Software Defined Networking with Cloud Access
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
TP Link ER605 - Technical Specifications
Hardware Features
- Standards and Protocols:
- IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q
- TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
- Interface:
- 1 Fixed Gigabit WAN Port
- Fixed Gigabit LAN Ports
- 2 Changeable Gigabit WAN/LAN Ports
- 1 USB 2.0 Port (Connecting 4G/3G Modem as WAN Backup)
- Network Media:
- 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m)
- 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m)
- 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
- Button: Reset Button
- Power Supply: External 12V/1A DC Adapter
- Flash: 128 MB NAND
- DRAM: 256 MB DDR
- LED: PWR, SYS, WAN (Link/Act), LAN (Link/Act), USB
- Dimensions ( W x D x H ): 6.2 × 4.0 × 1.0 in (158 × 101 × 25mm)
- Max Power Consumption: 7.94 W
Performance
- Concurrent Session: 150,000
- New Sessions /Second: 2,600
- NAT (Static IP)
- Upload: 945.77 Mbps
- Download: 945.56 Mbps
- Bi-Directional: 1808.29 Mbps
- NAT(DHCP)
- Upload: 945.93 Mbps
- Download: 945.43 Mbps
- Bi-Directional: 1808.11 Mbps
- NAT(PPPoE)
- Upload: 940.44Mbps
- Download: 940.52 Mbps
- Bi-Directional: 1804.27 Mbps
- NAT (L2TP)
- Upload: 845.64 Mbps
- Download: 802.65 Mbps
- Bi-Directional: 931.96 Mbps
- NAT (PPTP)
- Upload: 771.66 Mbps
- Download: 874.81 Mbps
- Bi-Directional: 999.54 Mbps
- 64 Byte Packet Forwarding Rate
- Upload/Download: 1,402,238 pps
- Bi-Directional: 1,681,548 pps
- IPsec VPN Throughput
- ESP-MD5-AES256: 171.26 Mbps
- ESP-SHA1-AES256: 224.86 Mbps
- ESP-SHA2-AES256: 248.04 Mbps
- OpenVPN
- 21.70 Mbps
- L2TP VPN Throughput
- Unencrypted: 864.65 Mbps
- Encrypted: 47.11 Mbps
- PPTP VPN Throughput
- Unencrypted: 703.20 Mbps
- Encrypted: 76.65 Mbps
Software Features
- Quality Of Service:
- Support 802.1p CoS/DSCP priority
- Support 8 priority queues
- Queue scheduling: SP, WRR, SP+WRR
- Port/Flow- based Rate Limiting
- IPv6 QoS
- L2 and L2+ Features:
- Voice VLAN
- Static Routing
- DHCP Relay
- DHCP Server
- IGMP Snooping V1/V2/V3
- 802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)
- Spanning Tree STP/RSTP/MSTP
- BPDU Filtering/Guard
- TC/Root Protect
- Loopback detection
- 802.3x Flow Control
- LLDP, LLDP-MED
- VLAN:
- Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
- MAC/Protocol-based VLAN
- Access Control List:
- L2–L4 package filtering
- MAC ACL
- IP ACL
- Combined ACL
- IPv6 ACL
Management
- Omada App:
- Yes
- Centralised Management:
- Omada Cloud-Based Controller
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
- Cloud Access:
- Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
- Management Features:
- Web-based GUI and CLI management
- SNMP v1/v2c/v3,compatible with public MIBs and TP-Link private MIBs
- RMON (1, 2, 3, 9 groups)
- CPU Monitoring
- Port Mirroring
- Firmware Upgrade: TFTP & Web
- System Diagnose: VCT
- SYSLOG & Public MIBS
- Dual Image
- EEE
Please see the Datasheet for full specifications.
