Ubiquiti airMAX Rocket 2AC Prism BaseStation
The Ubiquiti Rocket 2AC BaseStation (R2AC) is a powerful, easy to install AC radio. The R2AC features both airMAX ac and airPrism technologies to maximise WiFi in high-density areas. For optimal performance, pair the Rocket 2AC with airMAX antennas.
Ubiquiti Rocket R2AC Key Features
- 2.4 GHz Coverage
- airMAX ac Technology for up to 330+ Mbps Throughput
- Revolutionary airPrism Active RF Filtering Technology
- 10/100/1000 Ethernet Port
- GPS Sync (supported in v8.3.1 release)
The R2AC is compact at 88 x 40 x 230 mm and 440 g, and features a 10/100/1000 Ethernet port and robust RF connectors. With a die-cast aluminum enclosure, Atheros MIPS 74Kc processor, and certifications such as CE and FCC, it offers versatility in modes, services, and utilities for networking needs.
Operational flexibility defines the Rocket R2AC, with dynamic Ack, Ackless mode, and software-adjustable power. Supporting 10/20/40 MHz channels, it provides statistical reporting on parameters like up time and data rates. Ubiquiti-specific features, including airMAX ac mode and VLAN support, enhance its capabilities as a reliable and certified networking solution.
Revolutionary Filtering Technology
Ubiquiti’s patented airPrism technology provides breakthrough radio selectivity in unlicensed wireless band performance. airPrism technology isolates signals within the operating channel to increase capacity and throughput in co-location deployments.

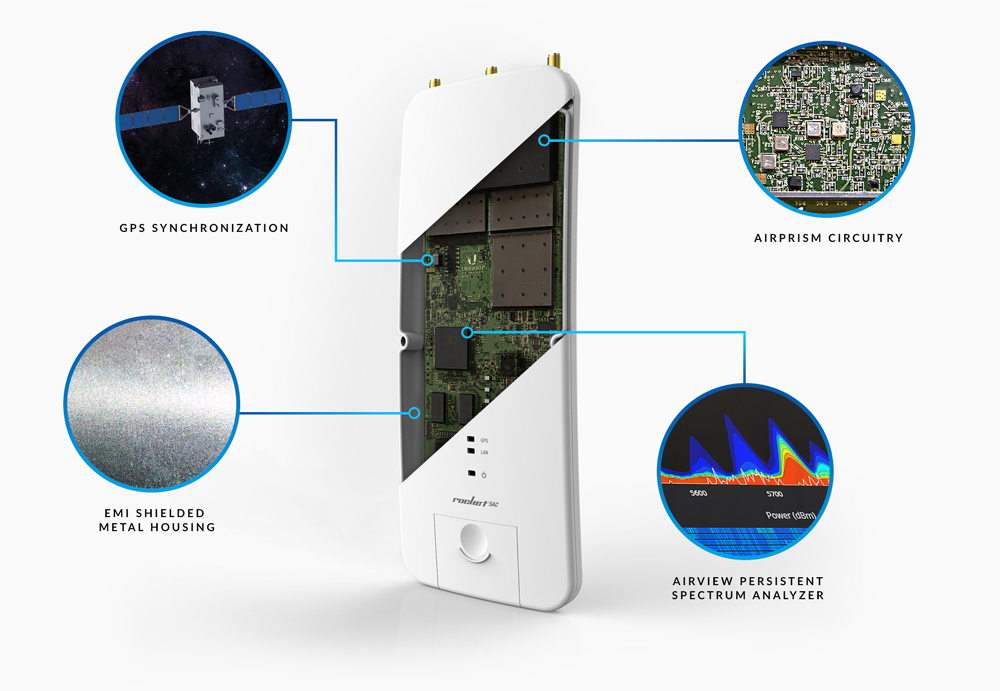

Designed for High Performance
The Rocket R2AC features EMI-shielded metal housing, GPS, airPrism circuitry, and the airView® real-time spectrum analyser to deliver maximum spectral efficiency/throughput.
Ubiquiti Rocket R2AC - Technical Specifications
General
- Dimensions: 88 x 40 x 230 mm (3.47 x 1.58 x 9.06")
- Weight: 440 g (15.52 oz)
- Networking Interface: (1) 10/100/1000 Ethernet Port
- RF Connectors: (2) RP-SMA (Waterproof), (1) GPS* (Waterproof )
- LEDs: (4) Signal Strength, GPS*, LAN, Power
- Enclosure: Die-Cast Aluminum with White Powder Coating
- Max. Power Consumption: 8.5W
- Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)
- Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
- Processor Specs: Atheros MIPS 74Kc, 720 MHz
- Memory: 128 MB DDR2 SDRAM, 16 MB NOR Flash
- Supported Voltage Range: 18-26VDC
- Signal Strength LEDs: Software-Adjustable to Correspond to Custom RSSI Levels
- Channel Sizes: 10/20/40 MHz
- ESD/EMP Protection: ± 24 kV Contact / Air for Ethernet
- Operating Temperature: -40 to 70° C (-40 to 158° F)
- Operating Humidity: 5 to 95% Noncondensing
- RoHS Compliance: Yes
- Shock and Vibration: ETSI300-019-1.4
- Modes: Access Point, Station
- Services: Web Server, SNMP, SSH Server, Telnet , Ping Watchdog, DHCP, NAT, Bridging, Routing
- Utilities: airMagic, airView, Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test
- Distance Adjustment: Dynamic Ack and Ackless Mode
- Power Adjustment: Software Adjustable UI or CLI
- Security: WPA2 AES Only
- QoS: Supports Packet Level Classification WMM and User Customer Level: High/Medium/Low
- Statistical Reporting: Up Time, Packet Errors, Data Rates, Wireless Distance, Ethernet Link Rate
- Other: Remote Reset Support, Software Enabled/Disabled, VLAN Support, 256QAM, GPS*, TX Filter
- Ubiquiti Specific Features: 10 MHz Channels, airMAX ac Mode, Traffic Shaping with Burst Support, Discovery Protocol, Frequency Band Offset, Ackless Mode
- Certifications: CE, FCC, IC
