Ubiquiti airMAX U-Installer CPE Installation Tool

Based on 0 ratings.

Write a Review

SKU:U-Installer

£8.64 inc. VAT

If you are a Wireless or comms reseller and are interested in selling 4Gon products as part of your business offering, you can apply to become an authorised reseller. Once accepted, you will have access to reseller pricing. Apply now

Ubiquiti U-Installer Datasheet(PDF)

Key Features

Powers CPE via PoE
Durable Rubber Casing
External PoE Reset

Product Details
Specification
Reviews
Questions

Please Note: This product has been discontinued. Please see the Ubiquiti airMAX range.

Ubiquiti airMAX U-Installer CPE Installation Tool

The Ubiquiti airMAX U-Installer makes installing airMAX Customer Premise Equipment (CPE) devices easier and more efficient by providing 24V PoE to the CPE. The U-Installer also provides Wi-Fi connectivity to the CPE management interface during installation, so provisioning and final adjustments can be made with a tablet or smartphone.

Ubiquiti airMAX U-Installer Key Features

Powers CPE via PoE
Durable Rubber Casing
External PoE Reset
Rubber Case Clip
Built-in Battery
Rechargeable via USB

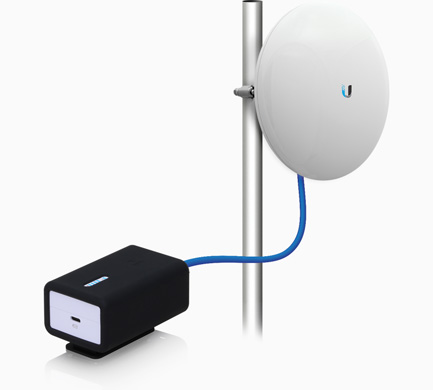

24V PoE and 1000mAh Internal Battery Pack
The U-Installer provides 24V PoE power to the airMAX CPE. With its internal battery pack, the U-Installer simplifies your installation toolkit.

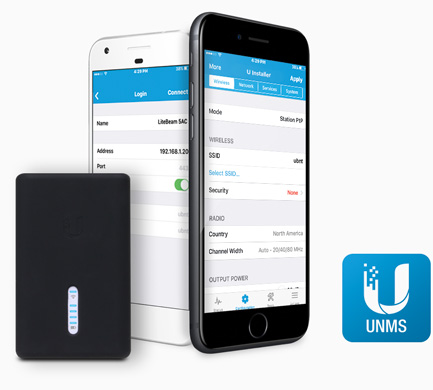

UNMS Mobile Support
Use the intuitive UNMS Mobile app for iOS or Android to align and configure the airMAX CPE or other Ubiquiti device.
UNMS

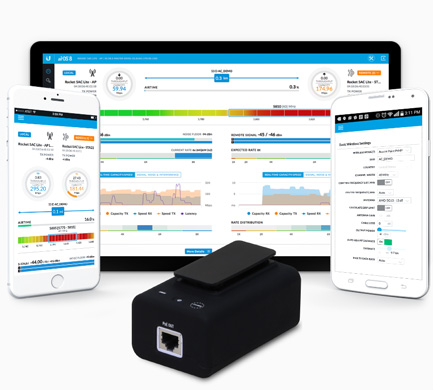

Wi-Fi Connectivity
The U-Installer provides Wi-Fi connectivity to the airOS management interface of a Ubiquiti device for a tablet or smartphone.
WiFi Connectivity

Ubiquiti airMAX U-Installer - Technical Specifications

General

Dimensions: 93 x 57 x 38.2 mm (3.66 x 2.24 x 1.50")
Processor: Atheros MIPS 74KC, 560MHz
Memory: 64 MB DDR2
Buttons: (1) Reset U-Installer, (1) Reset External airMAX Device, (1) Power On/Off
Networking Interfaces: (1) 10/100 Ethernet Port, Wi-Fi
Ports: (1) USB-C Port
Passive PoE Output:
- Voltage - 24V
- Max. Power - 12W
Management Interface: Wi-Fi
Wi-Fi Frequency: 2.4 GHz
Wi-Fi Standards: 802.11b/g/n
Power Method: Internal Battery, USB Mobile Battery Pack: 5V, 3A (Not Included)
Power Supply: 5V, 3A
Supported Voltage Range: 4.95 - 5.05V
Max. Power Consumption:
- U-Installer - 3W
- U-Installer with CPE - 15W
LEDs: (1) Wi-Fi, (4) Battery
ESD/EMP Protection: 24kV Contact / Air
Operating Temperature: 0 to 35° C (32 to 95° F)
Operating Humidity: 5 to 95% Noncondensing
Certifications: CE, FCC, IC
