Please Note: This product has been discontinued. Please see the ER-6P as an alternative.

Ubiquiti EdgeMAX EdgeRouter 5-Port PoE Router

The Ubiquiti EdgeMAX EdgeRouter (ERPoe-5) is a 5-Port PoE Router powered by the feature-rich EdgeOS, making it a versatile solution for any network. Combining one million packet-per-second routing, the EdgeRouter ERPoE-5 offers high-performance, hardware-based switching and PoE capabilities in an affordable and compact 5-port device.

Ubiquiti EdgeRouter PoE 5-Port (ERPoe-5) Key Features

Performance - 1 million pps
Gigabit RJ45 Ports - 5
PoE - 24V/48V Passive PoE
3 Gbps for packets 512 bytes or larger in size
10/100/1000 Ethernet ports that support 24V or 48V PoE output with software-selectable voltage control
Hardware-accelerated routing (Layer-3 base forwarding): 1,000,000 pps for 64-byte packets
Built-in hardware switch allows line-rate layer-2 switching

Powerful Routing Performance
The EdgeRouter PoE 5-port routes up to 1 million packets per second to meet the needs of carrier-class networks.

Powerful Performance

Versatile Functionality
Use the EdgeRouter PoE 5-port’s advanced feature set to run applications on the customisable open platform.

Convenient PoE Support
The EdgeRouter PoE 5-port supports 24V or 48V passive PoE to power multiple devices on the network.

PoE

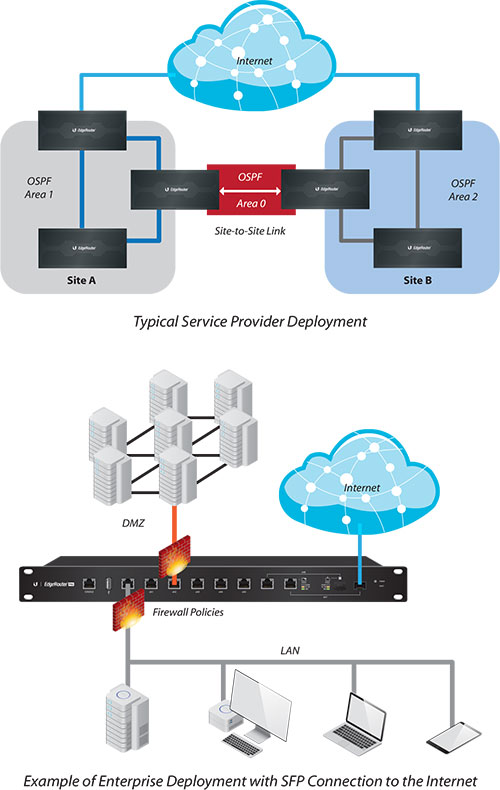

Deployment

Ubiquiti EdgeMAX EdgeRouter PoE 5-Port Router (ERPoe-5) - Technical Specifications

General

Dimensions: 200 x 90 x 30 mm (7.87 x 3.54 x 1.18 in)
Weight: 360g (12.7 oz)
Max. Power Consumption: 60W
Power Method: External AC/DC Power Adapter, 60W (48V, 1.25A) (Included)
Power Supply: External AC/DC Adapter
Supported Voltage Range: 38 - 54VDC
Power Connector Size: DC Power Jack, 2.1 mm, 2.1 mm ID, 5.5 mm OD
Button: Reset
LEDs Per Port:
- Serial Console Port: Power
- Data Ports: PoE, Speed/Link/Activity
PoE Configurable Per Port:
- Serial Console Port: N/A
- Data Ports: Off/24V/48V
Networking Interfaces:
- Serial Console Port: (1) RJ45 Serial Port
- Data Ports: (2) 10/100/1000 Ethernet Router Ports, (3) 10/100/1000 Ethernet Router/Switch Ports
Layer 3 Forwarding Performance:
- Packet Size: 64 Bytes: 1,000,000 pps
- Packet Size: 512 Bytes or Larger: 3 Gbps (Line Rate)
Processor: Dual-Core 500 MHz, MIPS64 with Hardware Acceleration for Packet Processing
System Memory: 512 MB DDR2 RAM
On-Board Flash Storage: 2 GB
Mounting: Wall
Operating Temperature: -10 to 45° C (14 to 113° F)
Operating Humidity: 10 - 90% Noncondensing
Certifications: CE, FCC, IC

PoE with 48VDC Power Adapter

PoE Out Voltage Range: 22-24VDC / 45-48VDC
Max. PoE Wattage Per Data Port: 12 W (24V), 24 W (48V)
Max. PoE Wattage Combined for All 5 Data Ports: 50W
PoE Method: Passive
