Ubiquiti Flex 2.5G 8 Port Switch (USW-Flex-2.5G-8)

0 Based on 0 ratings.
Write a Review
SKU:USW-Flex-2.5G-8
Enquire
Coming Soon
Accessories, Add-Ons, and Extras

Power Cable Required?:

Need Trade Pricing?

If you are a Wireless or comms reseller and are interested in selling 4Gon products as part of your business offering, you can apply to become an authorised reseller. Once accepted, you will have access to reseller pricing. Apply now

Documents and Manuals

No documents available for download

Key Features
  • 8x 2.5 GbE ports
  • One 10 GbE RJ45/SFP+ combination uplink port
  • Optional powering with USB-C or PoE+ adapter
  • Product Details
  • Reviews
Check the latest stock on the Ubiquiti Flex 2.5G 8 Port Switch at UX.co.uk

Ubiquiti Flex 2.5G 8 Port Switch (USW-Flex-2.5G-8)

The Ubiquiti Flex 2.5G 8 Port Switch  is an flexible, 8-port 2.5 GbE switch with a 10 GbE RJ45/SFP+ combination uplink port that can be powered with a USB-C or PoE+ adapter.

Flex 2.5G 8 Port Switch

Ubiquiti Flex 2.5G 8 Port Switch - Technical Specifications


Overview

  •  Dimensions: 212.9 x 76 x 33.5 mm (8.4 x 3 x 1.3")
  •  Port Layout
      2.5 GbE RJ45    8
      10 GbE RJ45     1
      10G SFP+          1

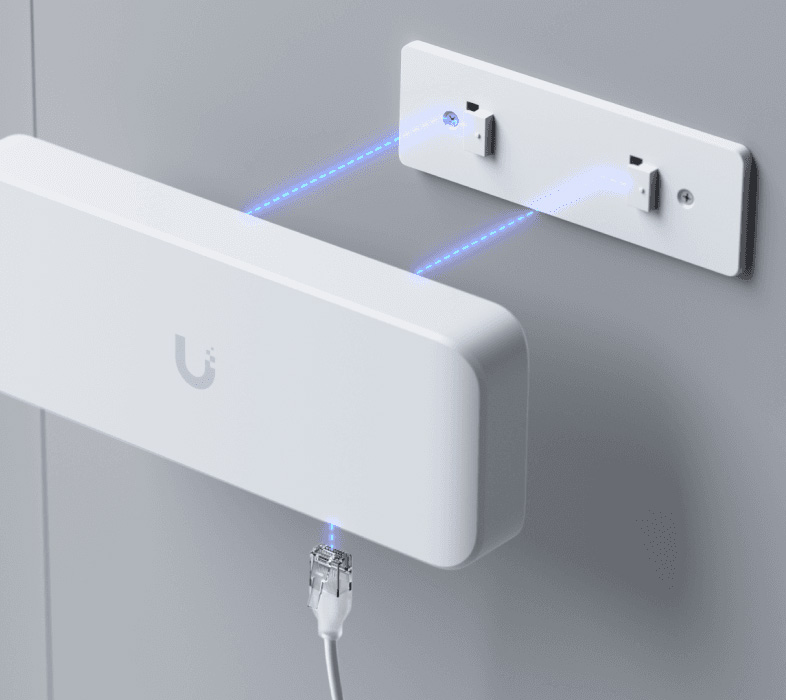

  • Form Factor:  Compact Desktop, wall, DIN, magnetic

Performance

  •  Switching Capacity:  60 Gbps
  •  Total Non-Blocking Throughput: 30 Gbps
  •  Forwarding Rate: 45 Mpps
  •  Supported VLANs: 256
  •  MAC Address Table Size: 4,000

Layer 2 Features

  •  STP & RSTP: Yes
  •  Egress Rate Limit: Yes
  •  Flow Control: Yes
  •  Storm Control: Yes
  •  Multicast & Broadcast Rate Limiting: Yes
  •  Port Isolation: Yes
  •  Port Mirroring: Yes
  •  Jumbo Frames: Yes
  •  Loop Protection: Yes

Hardware

  •  Max. Power Consumption:  14W with PoE input,  14W with AC adapter input
  •  Power Method : (1) USB Type-C, 5V DC, 3A,  (1) PoE+
  •  Power Input Method:  USB Input,  PoE
  •  Power Supply:  AC/DC, external, 15W
  •  Supported Voltage Range:  4.8—5.2V DC/USB,  44V—57V PoE
  •  Management:  Ethernet
  •  Weight:  395 g (0.87 lb)
  •  Enclosure Material:  Polycarbonate
  •  Mount Material:  Polycarbonate
  •  Ambient Operating Temperature:  -20 to 45° C (-4 to 113° F)
  •  Ambient Operating Humidity:  10 to 90% noncondensing
  •  Certifications: CE, FCC, IC
