Ubiquiti PowerBeam AC PBE-5AC-500-ISO

0 Based on 0 ratings.
Write a Review
SKU:PBE-5AC-500-ISO

Accessories, Add-Ons, and Extras

Need Product Setup / Training / Support?:
Fiber PoE Extender:
UK Cable for PoE Injector Required?:

Need Trade Pricing?

If you are a Wireless or comms reseller and are interested in selling 4Gon products as part of your business offering, you can apply to become an authorised reseller. Once accepted, you will have access to reseller pricing. Apply now

Documents and Manuals

  Ubiquiti PowerBeam PBE-5AC-500-ISO Quick Start Guide (PDF)
  Ubiquiti PowerBeam AC ISO Datasheet (PDF)
  Ubiquiti AirView Datasheet (PDF)

Key Features
  • Product Details
  • Reviews
Please Note: This product is end of life. It has been replaced by the PowerBeam 5AC Gen2.

Ubiquiti PowerBeam AC PBE-5AC-500-ISO

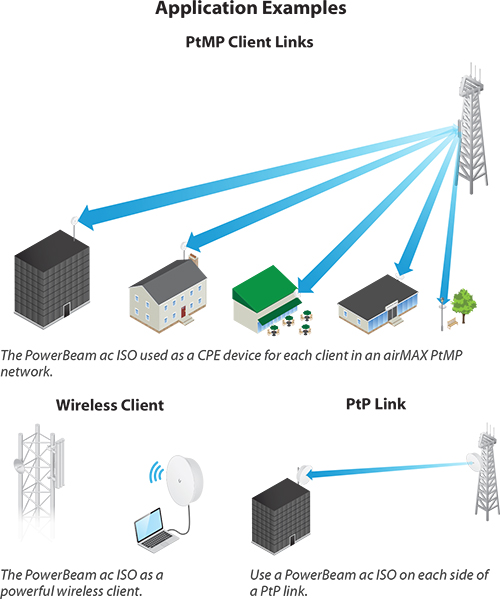

The Ubiquiti PowerBeam AC PBE-5AC-500-ISO uses airMAX AC technology and supports up to 450+ Mbps real TCP/IP throughput. It launches with PtP functionality, and a client mode feature will be added with a future firmware upgrade. The PBE-5AC-500-ISO also includes a protective radome to shield the radio from the elements.

Ubiquiti PowerBeam AC PBE-5AC-500-ISO Key Features

  • Outdoor UV Stabilised Plastic
  • Enclosure Outdoor UV Stabilised Plastic
  • Mounting Pole-Mount Kit Included

Ubiquiti PowerBeam AC PBE-5AC-500-ISO - Technical Specifications

Processor Specs

  • Atheros MIPS 74Kc, 720 MHz

Memory

  • 128 MB DDR2, 16 MB Flash

Networking Interface

  • (1) 10/100/1000 Ethernet Port

Wireless Approvals

  • FCC, IC, CE

RoHS Compliance

  • Yes

Dimensions

  • 520 x 520 x 308 mm (20.47 x 20.47 x 12.13")
  • 525 x 525 x 315 mm (20.67 x 20.67 x 12.40")

Weight

  • 2.35 kg (5.18 lb)
  • 3.15 kg (6.95 lb)

Power Supply

  • 24V, 0.5A Gigabit PoE

Power Method

  • Passive PoE (Pairs 4, 5+; 7, 8 Return)

Supported Voltage Range

  • 20-26VDC

Processor Specs

  • Atheros MIPS 74Kc, 720 MHz

Max. Power Consumption

  • 8.5W

Gain

  • 27 dBi

Operating Frequency

  • 5150 - 5875 MHz
  • 5725 - 5850 MHz

Wind Loading

  • 419.6 N @ 200 km/h (94.33 lbf @ 125 mph)

Wind Survivability

  • 200 km/h (125 mph)

LEDs

  • (1) Power, (1) LAN, (4) WLAN

Signal Strength LEDs

  • Software-Adjustable to Correspond to Custom RSSI Levels

Channel Sizes

  • 10/20/30/40/50/60/80 MHz
  • 10/20/30/40 MHz

Polarization

  • Dual Linear

Enclosure

  • Outdoor UV Stabilized Plastic

Mounting

  • Pole-Mount Kit Included

ESD/EMP Protection

  • Air: ± 24 kV, Contact: ± 24 kV

Operating Temperature

  • -40 to 70° C (-40 to 158° F)

Operating Humidity

  • 5 to 95% Non-Condensing

Salt Fog Test

  • IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5

Vibration Test

  • IEC 68-2-6

Temperature Shock Test

  • IEC 68-2-14

UV Test

  • IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4

Wind-Driven Rain Test

  • ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5

Specifications Tab
