Ubiquiti SuperLink Gateway- Technical Specifications

Mechanical

•  Dimensions With antenna: 159.3 x 81.9 x 26 mm (6.3 x 3.2 x 1"),  With DIN rail mount: 159.3 x 81.9 x 38.5 mm (6.3 x 3.2 x 1.5"),  With wall mount: 159.3 x 81.9 x 30.5 mm (6.3 x 3.2 x 1.2")
•  Weight:  179 g (6.3 oz)
•  Enclosure material:  Polycarbonate, aluminum alloy
•  Mount material:  Polycarbonate

Hardware

•  Networking interface:  (1) 10/100 MbE RJ45 port
•  Management interface:  Bluetooth® 5.2,  SuperLink (Proprietary)
•  Power method:  PoE USB Type-C, 5V, 1A (Optional)
•  Max. power consumption:  3.4W
•  ESD/EMP protection:  Air: ± 8kV Contact: ± 4kV
•  Antenna gain Bluetooth SuperLink:  3 dBi,  1 dBi
•  Max. TX power Bluetooth SuperLink:  10 dBm,  27 dBm
•  Max. client count Bluetooth SuperLink: 7, 96*
•  LED:  (1) Blue/white
•  Button:  (1) Factory reset

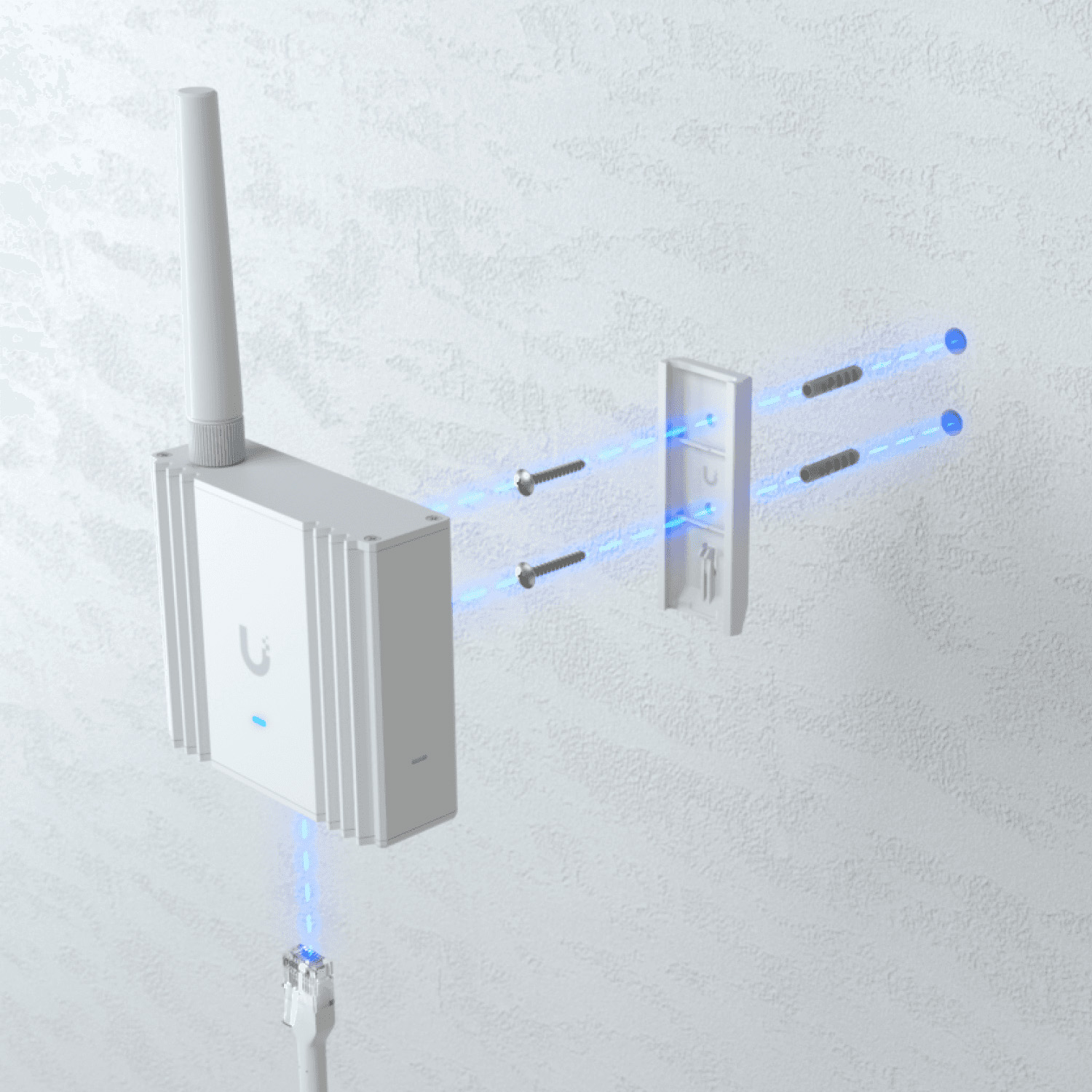

•  Mounting:  Wall, DIN rail
•  Ambient operating temperature:  0 to 40° C (32 to 104° F)
•  Ambient operating humidity:  10 to 90% noncondensing
•  Certifications:  FCC, IC, CE

Software

• Web application:  UniFi Protect
• Mobile app:  UniFi Protect iOS™ and Android™
