Ubiquiti UFiber UF-LOCO GPON (Gigabit Passive Optical Network) CPE

0 Based on 0 ratings.
Write a Review
SKU:UF-LOCO
23/11/2024 £36.00exc. VAT
£43.20 inc. VAT
Qty:
Back Order
Accessories, Add-Ons, and Extras

Need Product Setup / Training / Support?:
UK Power Supply Required?:
UF-Instant Optical Transceiver Required?:

Need Trade Pricing?

If you are a Wireless or comms reseller and are interested in selling 4Gon products as part of your business offering, you can apply to become an authorised reseller. Once accepted, you will have access to reseller pricing. Apply now

Documents and Manuals

  Ubiquiti UFiber GPON Datasheet (PDF)
  Ubiquiti UF-Loco Quick Start Guide (PDF)

Key Features
  • WAN: 1 x GPON Port
  • LAN: 1 x Gigabit Ethernet Port
  • 24V Passive PoE or Micro-USB Power Adapter
  • Product Details
  • Reviews

Ubiquiti UFiber Loco GPON Gigabit Optical Network Unit (UF-Loco)

The Ubiquiti UFiber Loco (UF-Loco) is a robust, high-performance Gigabit Passive Optical Network (GPON) CPE that features a sleek industrial design, an extremely low power consumption, and the choice of 24V passive PoE or Micro-USB power.

Ubiquiti UFiber Loco (UF-Loco) Key Features

  • High-Performance GPON CPE
  • LED diodes for easy diagnostics
  • Up to 2.4 Gbps Downstream and 1.2 Gbps Upstream
  • Supports up to 20 km GPON Links
  • Powerful Layer 2/3 Management Features
  • GPON WAN Port
  • RJ45 Gigabit LAN Port
  • SC/APC Fiber Connector

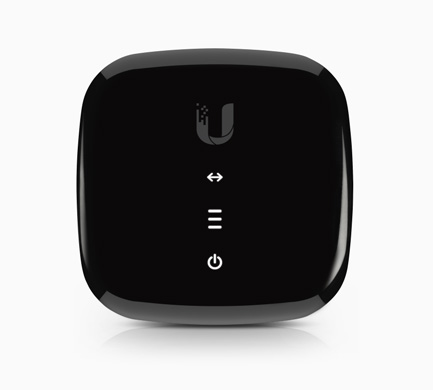

Status LEDs
The easy-to-read LEDs provide status information: Ethernet connection, signal strength, and power.

Status LEDs

Versatile Power
The UFiber Loco can be powered by either 24V passive PoE or by micro-USB, offering maximum flexibility.

Versatile Power


Designed for Integration
Up to 128 UFiber loco (UF-Loco) devices can be connected to a single GPON port. Supporting GPON links of up to 20 km, the UFiber loco integrates with the UFiber OLT and third-party OLT devices.

Designed for Integration

The UFiber network is intelligently managed using the included UNMS™ (Ubiquiti® Network Management System) controller. UFiber devices consist of the UFiber OLT (deployed at the provider premises) and the UFiber Nano G or loco clients, which function as ONU CPEs (Customer Premises Equipment).

Deployment2
Deployment Image

Ubiquiti UFiber Loco (UF-Loco) - Technical Specifications

General

  • Dimensions: 76.5 x 76.5 x 26.4 mm (3.01 x 3.01 x 1.04")
  • Weight: 77 g (2.72 oz)
  • Networking Interfaces:
    - (1) SC/APC, GPON WAN
    - (1) Gigabit RJ45, Ethernet LAN
  • Networking Interface Speeds:
    - GPON WAN, ITU G.984: 2.488 Gbps Downstream, 1.244 Gbps Upstream
    - GbE LAN: 10/100/1000 Mbps
  • Management Interface: In-Band Ethernet/PON
  • Normal Optical Power Range:
    - TX (Class B+): 1.5 to 5 dBm
    - RX: -28 to -8 dBm
  • Power Method:
    - Micro-USB: 5V, 1A
    - 24V Passive PoE (Pins +4, 5; -7, 8)
  • Power Supply: Micro-USB Power Adapter: 5V, 1A (only in single packs)
  • Max. Power Consumption: 3.5W
  • Supported Voltage Range: 4.7 to 5.3V
  • Processor Specs: MIPS32, 240 MHz
  • Memory Information: 128 MB DDR3
  • Buttons: (1) Reset
  • Operating Temperature: -10 to 45° C (14 to 113° F
  • Operating Humidity: 10 to 90% Noncondensing
  • Certifications: CE, FCC, IC

Specifications Tab
