Ubiquiti UniFi AC In-Wall Pro Access Point - 5 Pack (UAP-AC-IW-PRO-5)
The Ubiquiti UniFi AC In-Wall Pro 5-Pack UAP-AC-IW-PRO-5 is a compact and discrete 802.11ac indoor access point. It features 3x3 MIMO 2.4GHz and 3x3 MIMO 5GHz, with a transmission speed of up to 450 + 1300 Mbps. The UAP-AC-IW-PRO-5 is designed with offices, hotels, and hospitals in mind, allowing scalable and dedicated Wi-Fi per room.
Ubiquiti UniFi AC In-Wall Pro UAP-AC-IW-PRO-5 Key Features
- Scalable. Dedicated Wi-Fi per room
- Easy Setup, Monitoring, and Control
- Fast Radios: 802.11ac
- 3x3 MIMO
- 1300Mbps Data Rate
- 48V PoE Passthrough
The antenna system includes 1 built-in antenna with a gain of 5dBi for the 2.4GHz band and 6.5dBi for the 5GHz band. It also fully supports roaming when transferring associated clients between APs. This device is also available as a single pack.
Versatile Data and PoE Output
An Ethernet wall jack becomes an access point, a gigabit switch, and a PoE power source. Wire a workstation and power a VoIP phone. Or power a US-8 for even more Ethernet ports.

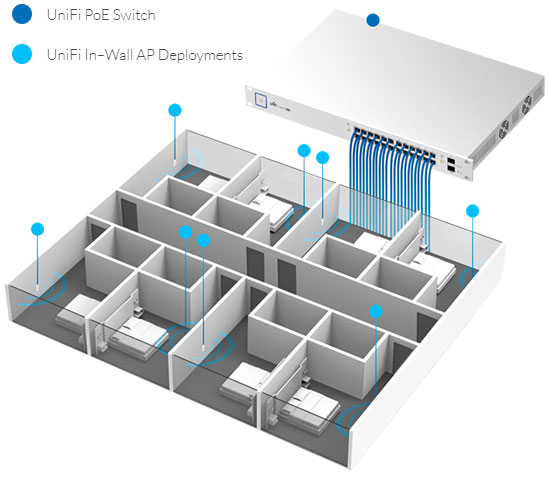

Deployment Example with the power of PoE
Turn existing wiring into per-room WiFi with the UniFi PoE Switch series (requires Cat5e or higher)

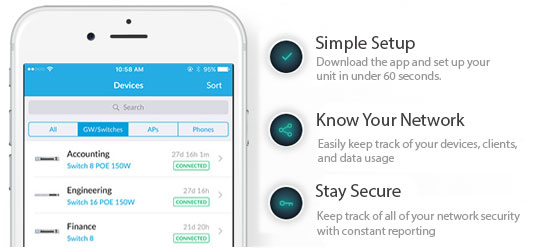

Simple and Scalable Device Management
The UniFi® Controller provides a graphical user interface for easy configuration and monitoring of the UniFi Switch and other UniFi devices.
Ubiquiti UniFi UAP-AC-IW-PRO-5 - Technical Specifications
General
- Dimensions: 139.7 x 86.7 x 25.75 mm (5.5 x 3.41 x 1.01")
- Weight: 210 g (7.41 oz)
- Networking Interface: (3) 10/100/1000 Ethernet Ports
- Buttons: Reset
- Power Method: 802.3at PoE+ Supported
- Power Supply: UniFi PoE Switch (Not Included)
- Power Save: Supported
- PoE Out: 48V Pass-Through (Pins 1, 2+; 3, 6-)
- PoE passthrough is supported by all of the UniFi switches except for the US-8 and US-8-60W
- Maximum Power Consumption: 10W
- With PoE Passthrough: 22W (Requires 802.3at PoE+ switch)
- Maximum TX Power:
- 2.4 GHz: 22 dBm
- 5 GHz: 22 dBm
- Antennas: (1) Dual-Band Antenna, Single-Polarity
- 2.4 GHz: 5 dBi
- 5 GHz: 6.5 dBi
- Wi-Fi Standards: 802.11 a/b/g/n/ac
- Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
- BSSID: Up to 8 per Radio
- Mounting: 1-Gang Electrical Wall Box (Not Included)
- Operating Temperature: -10 to 50° C (14 to 122° F)
- Operating Humidity: 5 to 95% Noncondensing
- Certifications: CE, FCC, IC
Advanced Traffic Management
- VLAN: 802.1Q
- Advanced QoS: Per-User Rate Limiting
- Guest Traffic Isolation: Supported
- WMM: Voice, Video, Best Effort, and Background
- Concurrent Clients: 250+
Supported Data Rates (Mbps)
- Standard: Data Rates
- 802.11ac: 6.5 Mbps to 1300 Mbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80)
- 802.11n: 6.5 Mbps to 450 Mbps (MCS0 - MCS15, HT 20/40)
- 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11b: 1, 2, 5.5, 11 Mbps
