Key Features

Compact WiFi 6 Cloud Gateway
140 m² (1,500 ft²) single-unit coverage
60+ connected WiFi devices

Product Details
Specification
Reviews
Questions

Ubiquiti UniFi Express (UX)

The Ubiquiti UniFi Express (UX) is the perfect all-in-one networking device for homes and small businesses. Compact, powerful, and easy to install, it delivers exceptional performance with advanced features and seamless UniFi integration.

With a WiFi 6 access point, it delivers fast, reliable dual-band wireless performance. It supports 140 m² of coverage and 50+ connected devices, making it ideal for smart homes and small offices. Equipped with Gigabit WAN and LAN ports, the UX offers reliable wired connections, while its USB-C power source ensures easy setup. Fully integrated with the UniFi Network Controller, managing your network is intuitive and efficient.

Ubiquiti UniFi Express (UX) Key Features

Built-in WiF6 (2x2 MIMO)
140 m² (1,500 ft²) single-unit coverage
Dual-band connectivity with support for high-density environments
Supports over 60 connected devices simultaneously
(1) GbE RJ45 WAN port
(1) GbE RJ45 LAN port to extend network
USB-C powered for simple, plug-and-play setup
0.96" LCM status display
Integrated UniFi Network Controller for easy management

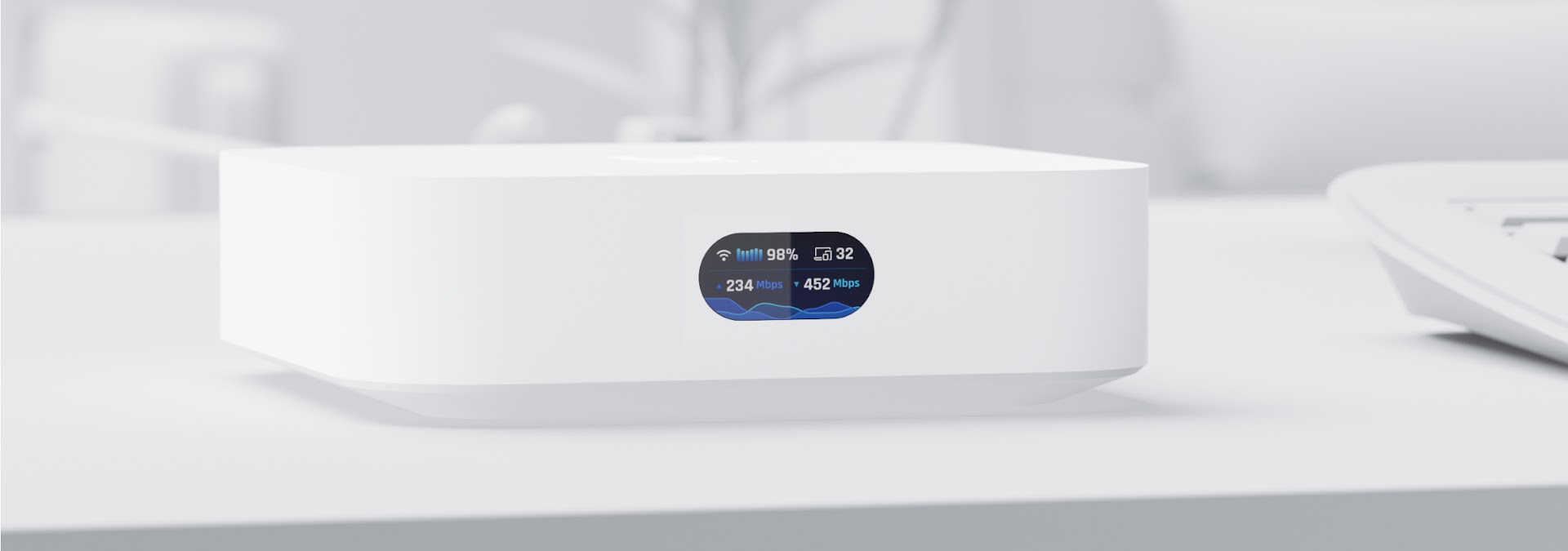

Ubiquiti Unifi UX Lifestyle image

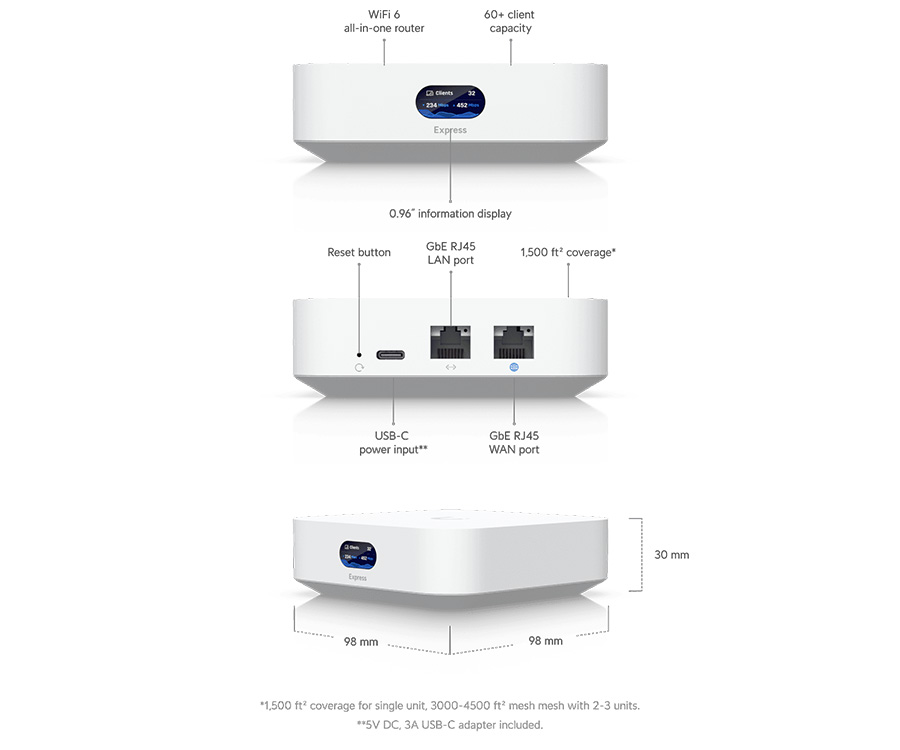

Ubiquiti UniFi UX Features

Ubiquiti UniFi Express (UX) Technical Specifications

Mechanical

Dimensions: 98 x 98 x 30 mm (3.6 x 3.6 x 1.2")
Weight: 302 g (10.7 oz)
Enclosure material: Polycarbonate

Hardware

Networking interface:
- (1) GbE RJ45 WAN port
- (1) GbE RJ45 LAN port
Management interface: Ethernet
Bluetooth
Power method: USB type C (5V DC/3A)
Max. power consumption: 10W
Max. WiFi TX power:
- 2.4 GHz: 22 dBm
- 5 GHz: 25 dBm
MIMO:
- 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
- 5 GHz: 2 x 2 (DL/UL MU-MIMO)
Throughput rate:
- 2.4 GHz: 573.5 Mbps
- 5 GHz: 2.4 Gbps
Antenna gain:
- 2.4 GHz: 4 dBi
- 5 GHz: 5.15 dBi
Antennas:
- (2) Internal 2.4G/5G WiFi dual-band antenna
- (1) Internal 2.4G single-band BT antenna
LCM display: 0.96" status display
Button: Factory reset
Operating temperature: -10 to 45° C (14 to 113° F)
Operating humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC

Software

WiFi standards: 802.11a/b/g, WiFi 4/WiFi 5/WiFi 6
Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID: 8 per radio
VLAN: 802.1Q
Advanced QoS: Per-user rate limiting
Guest traffic isolation: Supported
Concurrent clients: 60+
Zero wait DFS: Yes

Supported Data Rates

802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4): 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
