Ubiquiti UniFi G5 Dome Camera (UVC-G5-Dome)
The Ubiquiti UniFi UVC-G5-Dome is a high-performance dome camera that redefines surveillance. With a compact design measuring Ø109.2 x 64.5 mm (Ø4.3 x 2.5") and weighing just 390 g (13.76 oz), this camera is built to last. Its robust construction, featuring aluminium alloy and polycarbonate with a hard-coated dome, ensures durability, while its IPX4 weatherproof rating and IK08 resistance make it suitable for various environments.
UVC-G5-Dome Key Features:
- 2K HD, 30 FPS camera with a 5MP CMOS sensor
- Wide-angle view (102.4˚)
- Weatherproof IPX4-rated enclosure with IK08-rated vandal resistance
- Improved low-light performance and IR night vision up to 10m
- Improved dynamic range
Equipped with a 5 MP CMOS sensor and a fixed focal length lens, the UVC-G5-Dome captures sharp and detailed images. Its wide view angle (H: 102.4°, V: 71.4°, D: 134.3°) ensures comprehensive coverage. Plus, with built-in IR LED illumination and an IR cut filter for night mode, this camera provides round-the-clock security.

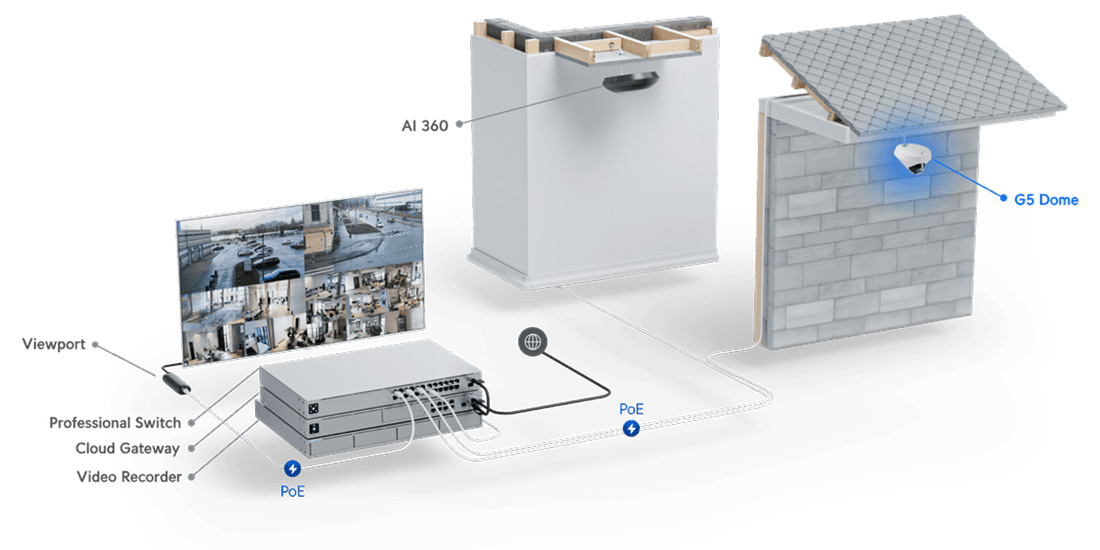

UVC-G5-DOME Deployment
Enjoy incredible video quality with H.264 and MJPEG compression, a high-resolution 2688 x 1512 (16:9) format, and a maximum frame rate of 30 FPS. Customize your image settings, including colour, brightness, sharpness, contrast, white balance, and more, for the perfect footage. With a dual-core Arm® Cortex®-A7 chip, a 10/100 MbE RJ45 networking interface, and PoE support, this camera offers efficient and convenient surveillance. It also supports a voltage range of 37–57 VDC and features a Link/activity LED (R/G/B/W) for status indication. The UVC-G5-Dome is an excellent choice for your security needs, and it's easily managed through the UniFi Protect application, accessible on both web and mobile platforms (compatible with Version 2.2.7 or 2.7.18 for web and 1.10.0 for mobile). Experience the future of surveillance with Ubiquiti's UniFi UVC-G5-Dome.
UVC-G5-DOME Features
Ubiquiti UniFi UVC-G5-Dome - Technical Specifications
Mechanical
- Dimensions Ø109.2 x 64.5 mm (Ø4.3 x 2.5")
- Weight 390 g (13.76 oz)
- Enclosure materials Aluminum alloy, polycarbonate, hard-coated dome
- Mount materials Polycarbonate, stainless steel
- Weatherproong IPX4
- Resistance IK08
Optics
- Sensor 5 MP CMOS sensor
- Lens Fixed focal length
- View angle H: 102.4°, V: 71.4°, D: 134.3°
- Night mode Built-in IR LED illumination and IR cut lter
Video
- Video compression H.264, MJPEG
- Resolution 2688 x 1512 (16:9)
- Max. frame rate 30 FPS
- Image settings Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking,text overlay
System
- Processor specs Dual-core Arm ® Cortex ® -A7 based chip
- Networking interface 10/100 MbE RJ45
- Max. power consumption 5W
- Power method PoE
- Supported voltage range 37–57 VDC
- Link/activity LED R/G/B/W
- Button Factory reset
- Mounting Wall, ceiling mount
- Operating temperature -20 to 40º C (-4 to 104º F)
- Operating humidity 0 to 90% noncondensing
- Certications FCC, IC, CE
Audio
- Microphone Yes (Can be disabled in software)
- Speaker Yes
Audio
- UniFi OS application UniFi Protect
- Mobile app UniFi ProtectiOS™ and Android™
