The

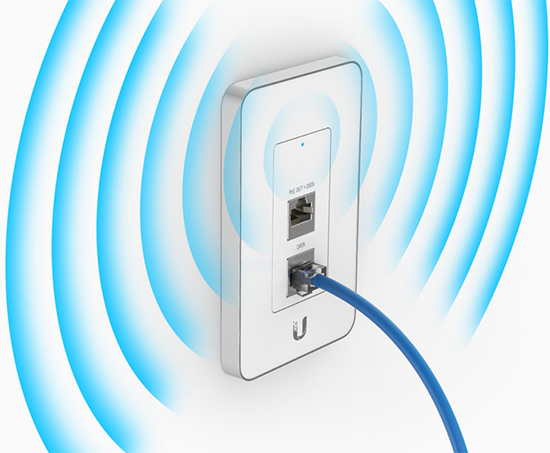

Ubiquiti UniFi In-Wall Wi-Fi AP is ideal for retrofitting an existing, in-wall, wired Ethernet jack to a wireless access point.
Ubiquiti UniFi In-Wall Wi-Fi AP Key Features
- Instant Deployment
- Easy Installation
- Power over Ethernet
- Versatile Data and PoE Output
Instant Deployment

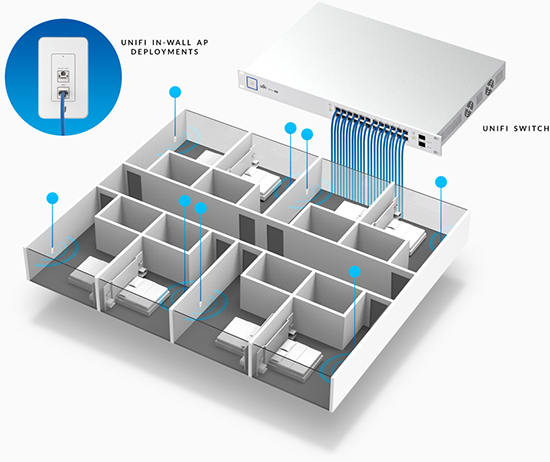

Transform any existing Ethernet outlet into a versatile UniFi AP – no additional wiring needed. Simply upgrade any single-gang Ethernet outlet to the UniFi In-Wall Wi-Fi AP.
Power Over Ethernet
The UniFi In-Wall Wi-Fi AP works with a UniFi Switch or any third-party, 802.3af PoE switch. An integrated PoE passthrough port also conveniently connects and powers a security camera, VoIP phone, or high-end AP.
Ubiquiti UniFi In-Wall Wi-Fi AP - Technical Specification
General
Dimensions: 114.6 x 70.6 x 28.5 mm (4.51 x 2.78 x 1.12 in)
Weight: 117 g (4.127 oz)
Networking Interface: (3) 10/100 Ethernet Ports
Buttons: Reset
Operating Frequency: 2.4 GHz
Antennas: 1 dBi
Wi-Fi Standards: 802.11 b/g/n
Power Method: UniFi Switch
Maximum Power Consumption: 6W
Max TX: Power 17 dBm
BSSID: Up to Four Per Radio
Power Save: Supported
Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
Certifications: CE, FCC, IC
Mounting: 1-Gang Electrical Wall Box (Not Included)
Operating Temperature: -10 to 70° C (14 to 158° F)
Operating Humidity: 5 to 95% Noncondensing
Advanced Traffic Management
VLAN: VLAN 802.1Q
Advanced QoS: Per-User Rate Limiting
Guest Traffic Isolation: Supported
WMM: Voice, Video, Best Effort, and Background
Concurrent Clients: 100+
Supported Data Rates (MBPS)
802.11n: 6.5 Mbps to 150 Mbps (MCS0 – MCS7, HT 20/40)
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
