Ubiquiti UniFi Pro Max 16 PoE Switch
Introducing the Ubiquiti UniFi Pro Max 16 PoE Switch, Layer 3 Etherlighting™ switch, engineered to revolutionise networking with 2.5 GbE speeds and Power over Ethernet (PoE++) capability. Boasting Etherlighting™ ports that illuminate to offer clear visual indicators for port location, speed/link status, and native VLAN/network assignment, this switch ensures intuitive management and troubleshooting. Its robust port configuration includes four 2.5 GbE PoE++ ports, twelve GbE PoE+ ports, and two 10G SFP+ ports, providing versatile connectivity options tailored to diverse networking requirements.
Ubiquiti Pro Max 16 PoE Key Features:
- Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
- (4) 2.5 GbE PoE++ ports
- (12) GbE PoE+ ports
- (2) 10G SFP+ ports
- 180W total PoE availability

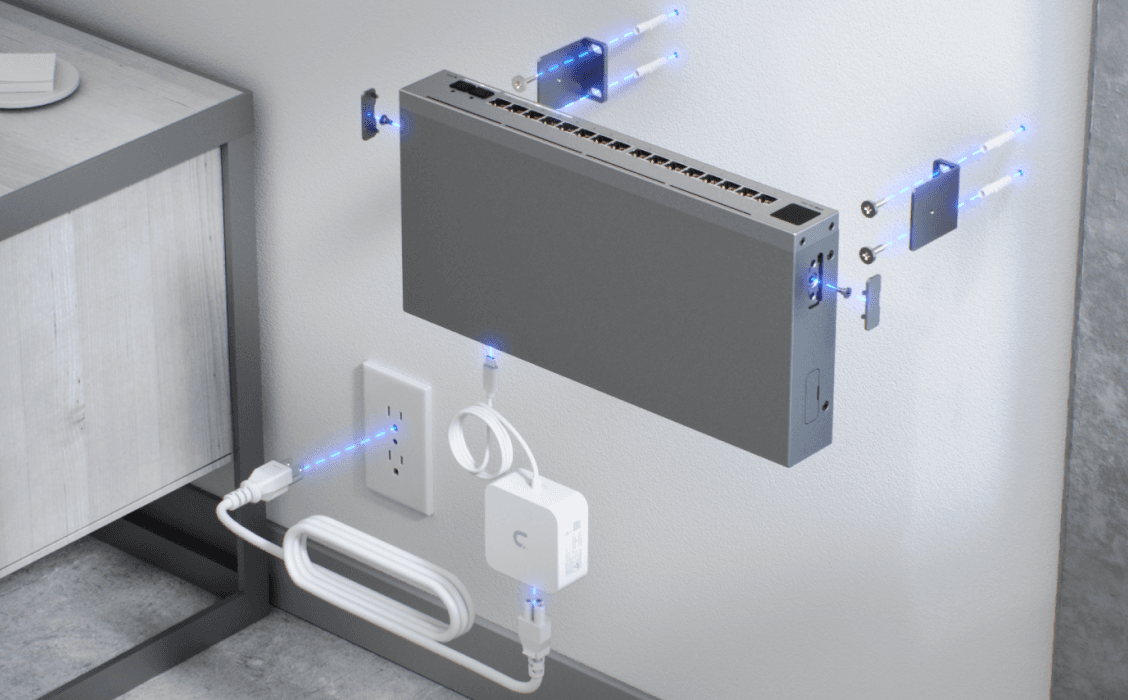

- Versatile desktop, wall, and rack** mounting
- Silent, fanless cooling system
This switch also features a total PoE availability of 180W, empowering efficient power delivery to connected devices such as IP cameras, access points, and VoIP phones. With its versatile mounting options, including desktop, wall, and rack installations, this switch seamlessly adapts to various deployment scenarios. Moreover, its silent, fanless cooling system guarantees optimal heat dissipation without compromising on noise levels, making it an ideal choice for noise-sensitive environments demanding high-performance networking solutions.
.png "Ubiquiti USW-Pro-Max-16-PoE")
Ubiquiti Pro Max 16 PoE Technical Specifications
Mechanical Dimensions
- Dimensions: 325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7")
- Weight: 2.1 kg (4.6 lb)
- Enclosure material: SGCC steel
Mechanical Hardware
- Management interface: Ethernet In-Band
- Networking interface:
- (12) GbE RJ45 ports
- (4) 1/2.5 GbE RJ45 ports
- (2) 10G SFP+ ports
- PoE interface:
- (12) PoE/PoE+ (Pins 1, 2+; 3, 6-)
- (4) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
- Total non-blocking throughput: 42 Gbps
- Switching capacity: 84 Gbps
- Forwarding rate: 62.496 Mpps
- Power method: DC adapter
- Power supply: 54V, 210W
- Max. power consumption: 30W (Excluding PoE output)
- Total available PoE: 180W
- Max. PoE wattage per port by PSE:
- PoE: 15.4W
- PoE+: 30W
- PoE++: 60W
- Voltage range PoE mode:
- PoE: 44—57V
- PoE+/PoE++: 50—57V
- LCM display: (1) 1.3" touchscreen
- Button: Factory reset
- Ambient operating temperature: -5 to 40° C (23 to 104° F)
- Ambient operating humidity: 10 to 90% noncondensing
- Certifications: CE, FCC, IC
Mechanical Switching Features
- Layer 2 features:
- IGMP snooping
- STP / RSTP with priorities and port-level disable
- Port isolation
- Storm control
- Voice VLAN
- Port mirroring
- LACP port aggregation
- Multicast / broadcast rate limiting
- MAC address blocking
- Flow control
- 802.1X control
- Jumbo frames
- Proprietary loop protection
- DHCP snooping / guarding
- Egress rate limit
- LLDP-MED
- Port restricted by MAC
- Device isolation with ACLs
- Layer 3 features:
- DHCP for locally-managed networks
- DHCP relay
- Inter-VLAN routing between networks on same switch
- Static routing between local networks
- Network isolation with ACLs
- Etherlighting™
Mechanical Application Requirements
- UniFi Network: Version 8.1.127 and later
