Ubiquiti UniFi Security Gateway XG (USG-XG-8)

Based on 0 ratings.

SKU:USG-XG-8

If you are a Wireless or comms reseller and are interested in selling 4Gon products as part of your business offering, you can apply to become an authorised reseller. Once accepted, you will have access to reseller pricing. Apply now

Ubiquiti UniFi Security Gateway XG Datasheet (PDF)
Ubiquiti UniFi Security Gateway USG-XG-8 Quick Start Guide (PDF)

Key Features

8 x 10G SFP+ Ethernet Ports
1 x Gigabit RJ45 Ethernet Port
2 x Hot-Swappable Modular PSU Bays

Product Details
Specification
Reviews
Questions

Please note: This product has been discontinued. Please see the USG-PRO-4 and US-16-XG as alternative products.

Ubiquiti UniFi Security Gateway XG (USG-XG-8)

The Ubiquiti UniFi USG-XG-8 is an enterprise 10G gateway that offers robust security and advanced routing features. The eight independent SFP+ ports provide full-capacity support of your 10G networks, whilst still remaining easy to use.

Ubiquiti UniFi Security Gateway XG Key Features

(8) 10G SFP+ Ethernet Ports
(1) Gigabit RJ45 Ethernet Port
(2) Hot-Swappable Modular PSU Bays
(1) 100W AC/DC Modular PSU Included
Bluetooth Management Interface
Built-In Touchscreen Display

The Ubiquiti UniFi Security Gateway XG also utilises hot-swappable PSUs, providing options for backup, redundancy, and DC power capacity.

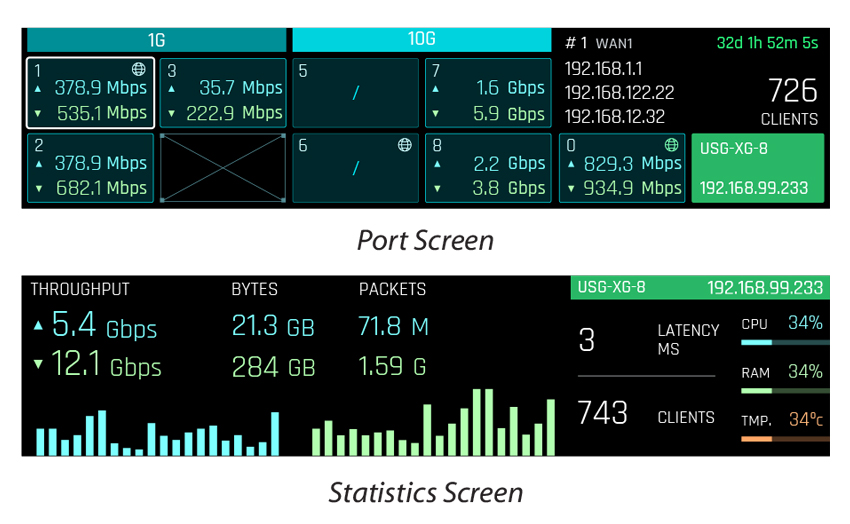

Built-In Touchscreen
The UniFi Security Gateway XG features a vivid built-in touchscreen display, to make managing your network even easier. The LCD touchscreen conveniently displays two different screens: the port display and the statistics display.

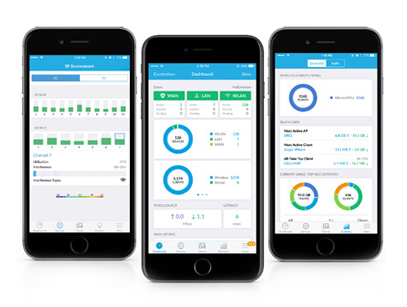

UniFi Mobile App
Managing your UniFi Security Gateway XG from your smartphone or tablet has never been easier thanks to the user-friendly UniFi mobile app.
Powerful Firewall Performance
The UniFi Security Gateway XG offers advanced firewall policies to protect your network and its data.

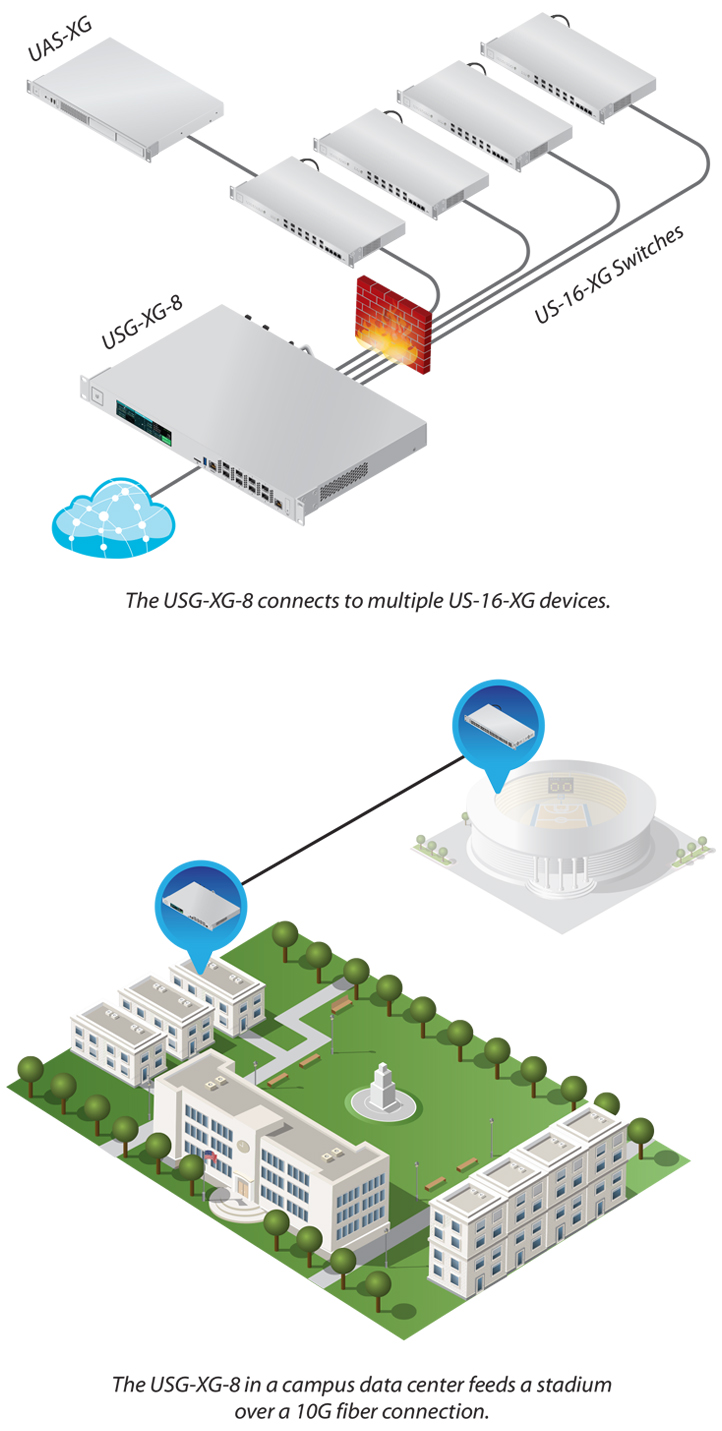

Deployment

Ubiquiti UniFi Security Gateway XG - Technical Specifications

General

Dimensions: 442.4 x 285.6 x 43.7 mm (17.42 x 11.24 x 1.72")
Weight:
-Without Mount Brackets: 4.44 kg (9.79 lb)
-With Mount Brackets: 4.54 kg (10.01 lb)
Max. Power Consumption: AC/DC 100W
Power Method: 100-240 VAC, 50-60 Hz Universal Input
Power Supply:
-(2) Hot-Swappable AC/DC or DC/DC 100W PSU (1 AC/DC PSU Included)
Supported Voltage Range: 100 to 240 VAC
LCD: 4.7" Wide-Viewing Angle True Color, TFT-LCD Touch Screen
System LED: Status
On-Board Flash Storage: 8 MB NOR Flash, 4 GB eMMC NAND Flash
Interfaces:
-Networking: (8) 10 Gbps SFP+ Ports, (1) 1 Gbps RJ45 Ethernet Port
-Management: (1) RJ45 Ethernet In-Band, (1) RJ45 Serial Out-of-Band, (1) Bluetooth 4.0
IPS Throughput: 1 Gbps
Processor: MIPS64 16-Core, 1.8 GHz
System Memory: 16 GB DDR4 RAM
Rack-Mount: Yes, 1U
ESD/EMP Protection: Air/Contact- ±24 KV
Operating Temperature: -5 to 40° C (23 to 104° F)
Operating Humidity: 5 to 95% Noncondensing
Certifications: CE, FCC, IC
