Ubiquiti UniFi Touch VoIP Phone (UVP-Touch)
The Ubiquiti UniFi Touch VoIP Phone (UVP) is Ubiquiti’s next-generation enterprise desktop smartphone. It features a higher-resolution 720 x 1280 HD color touchscreen display, an improved audio codec, redesigned physical buttons for convenient keypad and volume control. Built on Android Nougat and designed for use with the UniFi Talk Controller.
Ubiquiti UniFi Touch VoIP Phone Key Features
- 720 x 1280 HD color touchscreen display
- Built on Android Nougat with access to a full range of apps
- Works with UniFi Talk Controller
- Automatic provisioning for quick deployment
Scalable System Management
Ubiquiti’s proprietary SDN software, the UniFi®Controller, provides scalable system management of Android-based UniFi VoIP Phones, including extension management, mass firmware upgrades, and mass configuration provisioning. Such ease of use makes the UniFi VoIP Phones ideal for quick deployment in small businesses, corporate locations, schools, and hotels.
HD Touchscreen
The high-definition, multi-touch color display is designed for ease of use and quick navigation.

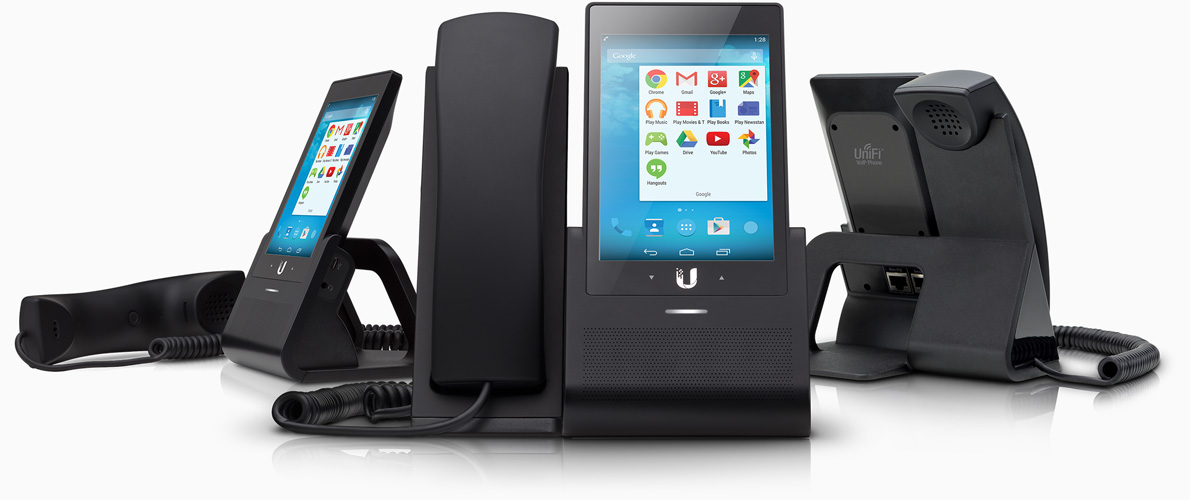

Cutting-Edge Design
The UniFi® VoIP Phone features a sleek industrial design that seamlessly integrates into any office setting. The ergonomic handset features a comfortable, soft-touch grip and a conveniently located Mute button.
High-Fidelity Audio
The UniFi® VoIP Phone provides excellent sound quality for an exceptional audio calling experience.
Disruptive Pricing, No Fees
The UniFi® Controller software is bundled with the UniFi VoIP Phone at no extra charge – no separate software, licensing, or support fee.

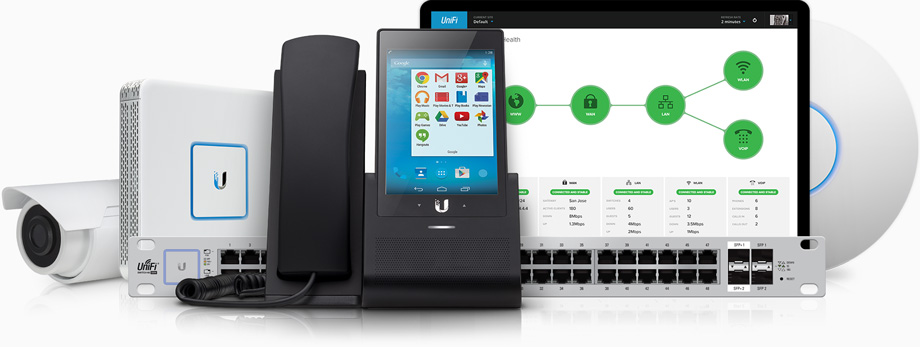

Seamless Integration
UniFi® VoIP Phones integrate seamlessly into the UniFi Software Defined Networking (SDN) platform to create a highly scalable, end-to-end system of network devices across multiple locations — all controlled from a single interface.
Ubiquiti UniFi Touch VoIP Phone - Technical Specifications (coming soon)
General
- Dimensions 166 x 140 x 182.5 mm (6.50 x 5.50 x 7.19")
- Weight 1.10 kg (2.43 lbs)
- 720 x 1280 HD color touchscreen display
- LED Power: White, Glowing
- Handset Dynamic Receiver 32 ohm/101 dB/30mW
- Microphone Omni-Directional/-36 dB/2.2K ohm
- EC DSP Removing Ambient Noise and Acoustic Echoes
- Power Input PoE 802.3.af (13W)
- Hands-Free Speaker Mono 2.6W
- Hands-Free Microphone Omnidirectional/SNR 61 ± 5 dB/Sensitivity -38 ± 3 dB Analogue Silicon microphone
- Connectivity (2) 10/100/1000 Ethernet Ports
- (1) USB 2.0 microUSB Port
- Accessory Detection Volume Up/Down and Media Detection
- Built on Android Nougat with access to a full range of apps
- Works with UniFi Talk Controller
- Processor Dual Core Cortex A9, 1.2 GHz
- 4 GB storage (Shared with Other Applications)
- 1 GB RAM
- Automatic provisioning for quick deployment
Software
- OS Android Kit Kat (Version 4.4.2)
- Voice Codec G.722/Speex/iLBC/PCMU/PCMA/GSM
- Communication Software UniFi Phone App
- Management Features Auto-Provisioning
- Protocol SIP/SDP/RTP/RTCP/VLAN/DHCP
- Works with UniFi Network Controller
- Manage and monitor your phones from a single interface
- View Call Logs
- Review call quality experience
- Easily integrate new phones
