Ubiquiti UniFi U6 Mesh Pro Access Point (U6-Mesh-Pro)

Based on 0 ratings.

Write a Review

SKU:U6-Mesh-Pro

£158.00exc. VAT

£189.60 inc. VAT

Qty:

Product available

Order in 00h 00m for delivery

If you are a Wireless or comms reseller and are interested in selling 4Gon products as part of your business offering, you can apply to become an authorised reseller. Once accepted, you will have access to reseller pricing. Apply now

No documents available for download

Key Features

WiFi 6
4 spatial streams
Powered using PoE

Product Details
Specification
Reviews
Questions

Ubiquiti UniFi U6 Mesh Pro Access Point (U6-Mesh-Pro)

The Ubiquiti U6 Mesh Pro Access Point (U6-Mesh-Pro) redefines wireless connectivity with WiFi 6 technology, boasting 4 spatial streams for lightning-fast speeds. Its integrated super antenna ensures coverage of up to 185 m² (2,000 ft²), indoors or outdoors, accommodating over 350 devices seamlessly.

U6-Mesh-Pro

Ubiquiti UniFi U6 Mesh Pro Access Point (U6-Mesh-Pro) Key Features

WiFi 6
4 spatial streams
185 m² (2,000 ft²) coverage with the integrated omnidirectional super antenna
350+ connected devices
Powered using PoE
GbE uplink with (1) GbE passthrough port

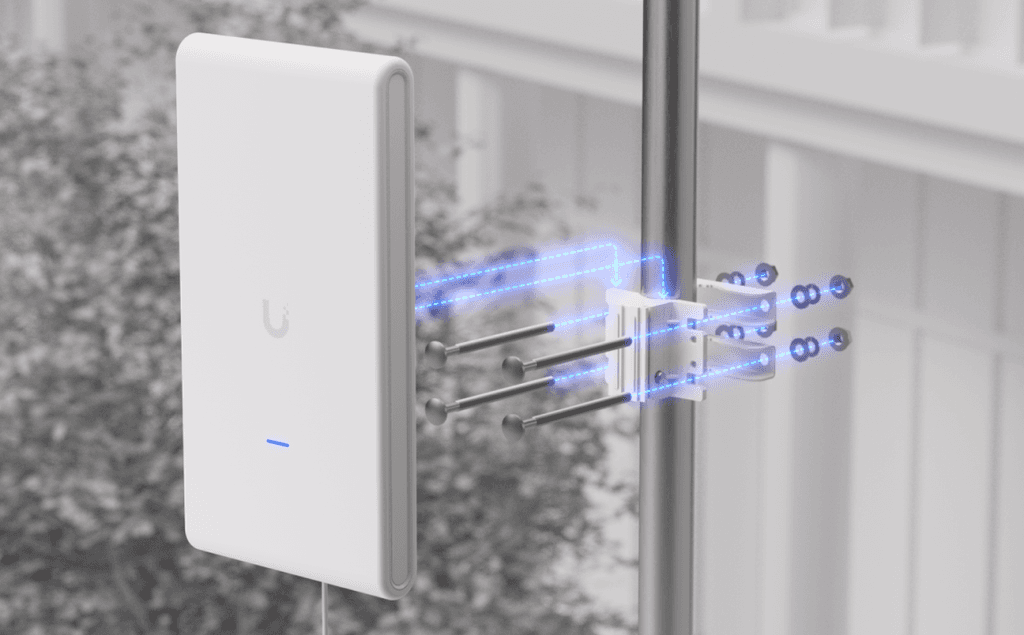

Versatile wall and pole mounting
Weatherproof (outdoor exposed)

Powered via PoE with a gigabit passthrough port, it offers easy integration into existing networks. With versatile mounting options and weatherproof design, it's a robust solution for any environment, setting a new standard for reliable, high-performance networking.

U6-Mesh-Pro

Ubiquiti UniFi U6 Mesh Pro Access Point (U6-Mesh-Pro) - Technical Specifications

Mechanical

Dimensions: 343.2 x 181.2 x 60.2 mm (13.5 x 7.1 x 2.4")
Weight: 819 g (1.8 lb)
Enclosure material: UV-stabilised polycarbonate
Mount material: Aluminum alloy, steel
Pole mount diameter: 1~2.5" on pipe outer diameter
Weatherproofing: IPX6

Hardware

Networking interface: (2) GbE RJ45 ports
Management interface: Ethernet, WiFi
Power method: PoE
Power supply:
- UniFi PoE switch
- 48V, 0.5A PoE adapter (Included)
Supported voltage range: 42.5—57V DC
Max. power consumption: 9W
Max. TX power:
- 2.4 GHz: 22 dBm
- 5 GHz: 27 dBm
- 6 GHz: –
MIMO:
- 2.4 GHz: 2 x 2 (DL/UL MU MIMO)
- 5 GHz: 2 x 2 (DL/UL MU-MIMO)
- 6 GHz: –
Throughput rate:
- 2.4 GHz: 573.5 Mbps
- 5 GHz: 2.4 Gbps
- 6 GHz: –
Antenna gain:
- 2.4 GHz: 8 dBi
- 5 GHz: 8 dBi
- 6 GHz: –
LEDs: White/blue
Button: Factory reset
Mounting: Wall, pole (Included)
Ambient operating temperature: -30 to 60° C (-22 to 140° F)
Ambient operating humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC

Software

WiFi standards: 802.11a/b/g/n/ac/ax
Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID: 8 per radio
VLAN: 802.1Q
Advanced QoS: Per-user rate limiting
Guest traffic isolation: Supported
Concurrent clients: 350+
Supported Data Rates:
- 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11b: 1, 2, 5.5, 11 Mbps
- 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11n (WiFi 4): 6.5 Mbps to 300 Mbps (MCS0 - MCS15 , HT 20/40)
- 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
- 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
Application Requirements:
- UniFi Network: Version 8.1.127 and later
