Ubiquiti UniFi U7 Pro Outdoor (U7-Pro-Outdoor)

0 Based on 0 ratings.
Write a Review
SKU:U7-Pro-Outdoor
Enquire
Coming Soon
Accessories, Add-Ons, and Extras

Need Trade Pricing?

If you are a Wireless or comms reseller and are interested in selling 4Gon products as part of your business offering, you can apply to become an authorised reseller. Once accepted, you will have access to reseller pricing. Apply now

Documents and Manuals

No documents available for download

Key Features
  • WiFi 7
  • 6 spatial streams
  • 300+ connected devices
  • Product Details
  • Reviews

Ubiquiti UniFi U7 Pro Outdoor (U7-Pro-Outdoor)

The Ubiquiti U7 Pro Outdoor Access Point is the ultimate solution for seamless outdoor connectivity. Equipped with advanced WiFi 7 technology, it delivers lightning-fast speeds, extensive coverage, and robust performance for even the most demanding environments. Designed with durability and flexibility in mind, it’s perfect for outdoor areas that require reliable, high-capacity wireless networking.

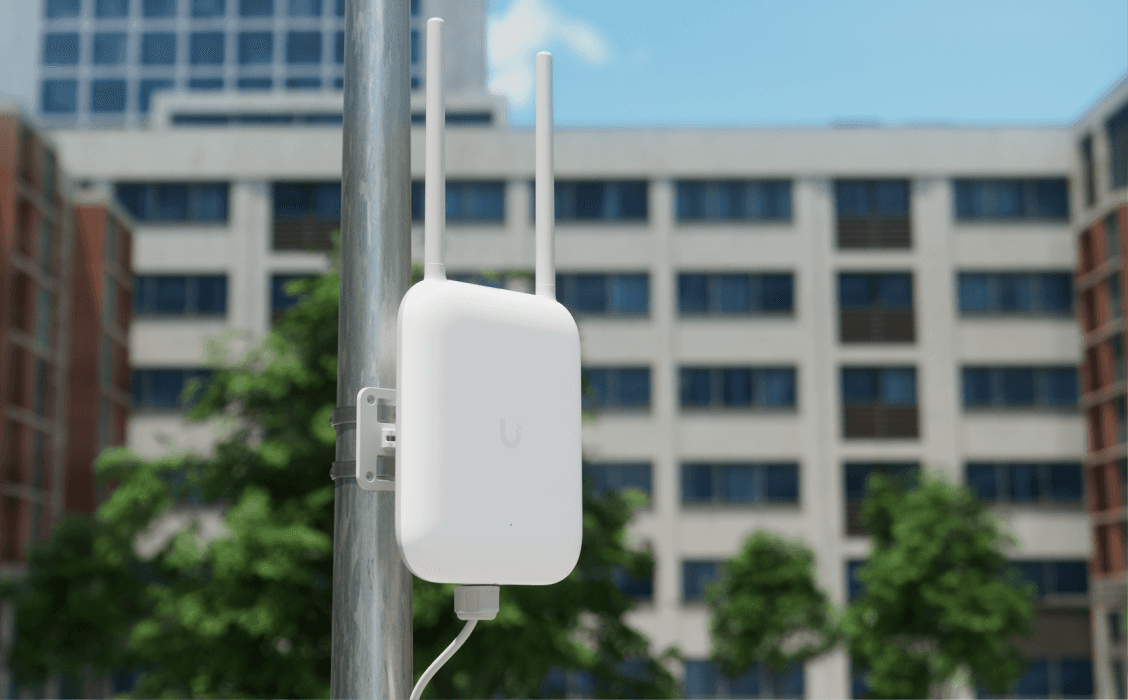

U7-Outdoor Deployment

U7-Pro-Outdoor Key Features:

  • WiFi 7 for next-generation speed and efficiency
  • 6 spatial streams
  • 465 m² (5,000 ft²) open space coverage with the integrated directional super antenna
  • Switch between directional and omni antennas easily
  • Supports over 300 devices simultaneously
  • PoE+ for simplified, single-cable installation
  • 2.5 GbE uplink
  • Versatile wall and pole mounting
  • Weatherproof IP67-rated for outdoor durabilityU7-Pro-Outdoor Built in features

The Ubiquiti U7 Pro Outdoor Access Point delivers next-gen WiFi 7 speeds and expansive coverage up to 465 m² (5,000 ft²). Designed for flexibility, it supports over 300 devices and features switchable antennas, a weatherproof IP67-rated build, and easy PoE+ installation. Perfect for robust, high-performance outdoor connectivity.

U7-Pro-Outdoor Technical Specifications

Mechanical

  • Dimensions: 170 x 208 x 66.5 mm (6.7 x 8.2 x 2.6")
  • Weight: 1.2 kg (2.6 lb)
  • Enclosure material: UV-stabilised polycarbonate, aluminum alloy
  • Mount material: UV-stabilised polycarbonate
  • Pole mount diameter: 25–63.5 mm (1–5") on pipe outer diameter
  • Wind survivability: 74.6 N at 200 km/h (16.8 lbf at 125 mph)
  • Weatherproofing: IPX6 - IP67 with cable-gland door kit (included)

Hardware

  • Networking interface: (1) 1/2.5 GbE RJ45 port
  • Management interface: Ethernet
  • Power method: PoE+
  • Power supply: UniFi PoE Switch
  • Supported voltage range: 42.5—57V DC
  • Max. power consumption: 21W
  • Max. TX power
    • 2.4 GHz: 23 dBm
    • 5 GHz: 29 dBm
    • 6 GHz: –
  • MIMO
    • 2.4 GHz: 2 x 2
    • 5 GHz: 4 x 4
    • 6 GHz: –
  • Throughput rate
    • 2.4 GHz: 688 Mbps
    • 5 GHz: 8.6Gbps
    • 6 GHz: –
  • Antenna gain
    • 2.4 GHz: Directional internal: 8 dBi / External omni: 6 dBi
    • 5 GHz: Directional internal: 11 dBi / External omni: 8 dBi
    • 6 GHz: –
  • Antenna beamwidth
    • 2.4 GHz: 90°
    • 5 GHz: 90°
    • 6 GHz: –
  • Antennas: (1) Directional internal antenna, (2) RP-SMA connectors for external antenna
  • LEDs: (1) Power: white/blue, (4) Mesh signal: blue
  • Button: Factory reset
  • Mounting: Wall, ceiling, pole (Included)
  • Ambient operating temperature: -30 to 60° C (-22 to 140° F)
  • Ambient operating humidity: 5 to 95% noncondensing
  • Certifications: CE

Software

  • WiFi standards: 802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi7)
  • Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
  • BSSID: 8 per radio
  • VLAN: 802.1Q
  • Advanced QoS: Per-user rate limiting
  • Guest traffic isolation: Supported
  • Concurrent clients: 300+
  • Supported Data Rates
    • 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    • 802.11b: 1, 2, 5.5, 11 Mbps
    • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    • 802.11n: 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
    • 802.11ac (WiFi 5): 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
    • 802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
    • 802.11be (WiFi 7): 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)

Specifications Tab
