Ubiquiti UniFi U7 Pro XG Access Point (U7-Pro-XG)
The Ubiquiti UniFi U7 Pro XG is Ubiquiti’s flagship Wi-Fi 7 access point, engineered for ultra-high-performance networking in enterprise, commercial, and high-density environments. Designed to handle massive network traffic and demanding applications, this AP ensures unparalleled speed, stability, and efficiency for the most data-intensive workloads.
U7-Pro-XG Key Features:
- Wi-Fi 7 with 6 GHz support
- 6 spatial streams
- 140 m² (1,750 ft²) coverage
- 300+ connected devices
- Powered using PoE+
- Uplink 10/5/2.5/1 GbE
The U7-Pro-XG, harnesses the power of Wi-Fi 7 (802.11be), the latest wireless standard that delivers higher speeds, lower latency, and greater efficiency than previous generations. It enables multi-link operation (MLO), which allows devices to transmit data across multiple frequency bands simultaneously, reducing congestion and optimizing performance.
Like all UniFi access points, the U7-Pro-XG is fully integrated with UniFi Network, offering a powerful suite of management and security tools. Administrators can monitor network health, analyze traffic patterns, enforce security policies, and optimize performance in real time using the UniFi Controller. Features such as VLAN support, guest access control, and intrusion detection ensure that the network remains secure, scalable, and easy to manage.
U7-Pro-XG Technical Specifications
Overview
- Dimensions: Ø206 x 32.5 mm (Ø8.1 x 1.3")
- WiFi Standard : WiFi 7
- Spatial Streams: 6
- Coverage Area: 140 m² (1,500 ft²)
- Max. Client Count: 300+
- Uplink: 10 GbE

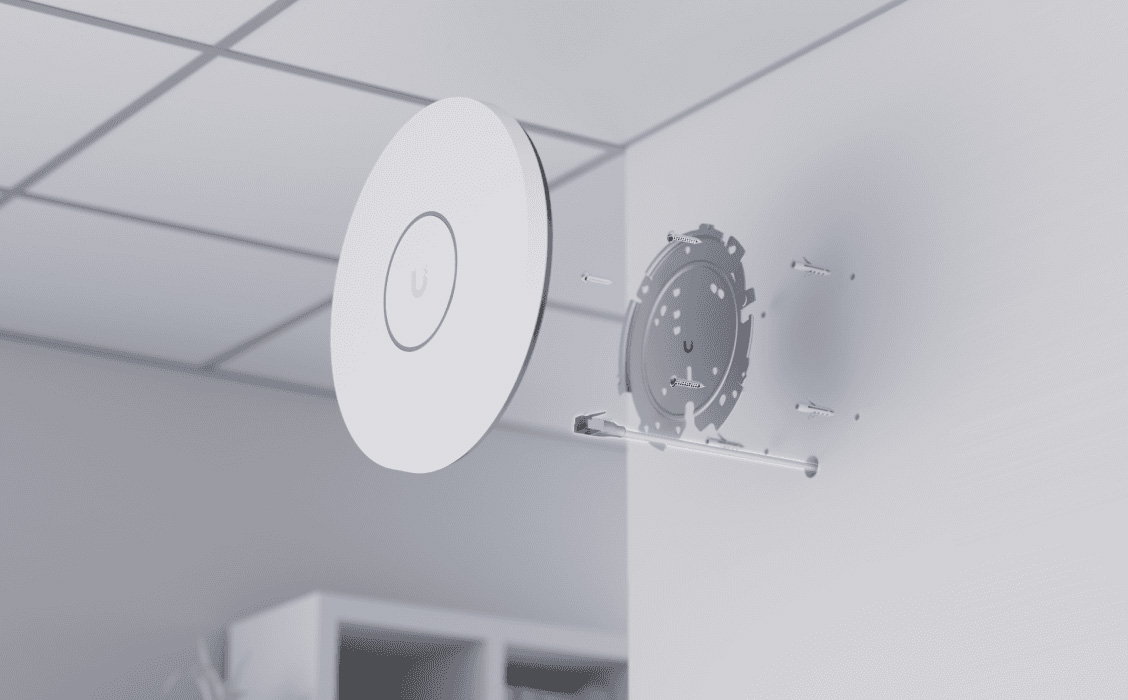

- Mounting: Ceiling, Wall (Lite Mount Included)
- Power Method: PoE+
Performance
- MIMO
- 6 GHz 2 x 2 (DL/UL MU-MIMO)
- 5 GHz 2 x 2 (DL/UL MU-MIMO)
- 2.4 GHz 2 x 2 (DL/UL MU-MIMO)
- Max. Data Rate
- 6 GHz 5.8 Gbps (BW320)
- 5 GHz 4.3 Gbps (BW240)
- 2.4 GHz 688 Mbps (BW40)
- Antenna Gain
- 6 GHz 6 dBi
- 5 GHz 5 dBi
- 2.4 GHz 4 dBi
- Max. TX Power
- 6 GHz 24 dBm
- 5 GHz 26 dBm
- 2.4 GHz 23 dBm
- Max. BSSIDs: 8 per Radio
- Supported Data Rates
- 802.11be (WiFi 7) 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320), 5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
- 802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
- 802.11ac (WiFi 5) 6.5 Mbps to 3.4Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
- 802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Features
- Wireless Meshing: Yes
- Band Steering: Yes
- 802.11v BSS Transition Management: Yes
- 802.11r Fast Roaming: Yes
- 802.11k Radio Resource Management (RRM): Yes
- Advanced Radio Management: Yes
- Passpoint (Hotspot 2.0): Yes
- Captive Hotspot Portal
- Custom Branding Landing Page: Yes
- Voucher Authentication: Yes
- Payment-Based Authentication: Yes
- External Portal Server Support: Yes
- Password Authentication: Yes
- Guest Network Isolation: Yes
- Private Pre-Shared Key (PPSK): Yes
- WiFi Speed Limiting: Yes
- Client Device Isolation: Yes
- WiFi Schedules: Yes
- RADIUS over TLS (RadSec): Yes
- Dynamic RADIUS-assigned VLAN: Yes
Hardware
- Max. Power Consumption: 22W
- Supported Voltage Range: 42.5—57V DC
- Networking Interface: (1) 10 GbE RJ45 port
- Weight: 750 g (1.7 lb)
- Management: Ethernet
- Enclosure Material: UV-stabilized polycarbonate, aluminum alloy
- Mount Material: Stainless steel (SUS304), galvanized steel (SGCC)
- LEDs: System White/Blue
- Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
- Certifications: CE, FCC, IC
- Ambient Operating Temperature: -30 to 40° C (-22 to 104° F)
- Ambient Operating Humidity: 5 to 95% noncondensing
