Ubiquiti UniFi WiFi 7 In-Wall Access Point (U7-IW)

0 Based on 0 ratings.
Write a Review
SKU:U7-IW
Enquire
Out of Stock
Accessories, Add-Ons, and Extras

Need Trade Pricing?

If you are a Wireless or comms reseller and are interested in selling 4Gon products as part of your business offering, you can apply to become an authorised reseller. Once accepted, you will have access to reseller pricing. Apply now

Documents and Manuals

No documents available for download

Key Features
  • High-efficiency, four-stream WiFi 7 technology
  • Dual-band operation (2.4 GHz & 5 GHz)
  • 2.5GbE uplink (RJ45, PoE)
  • Integrated wired passthrough ports (Gigabit Ethernet)
  • Product Details
  • Reviews

Ubiquiti UniFi WiFi 7 In-Wall Access Point (U7-IW)

The Ubiquiti UniFi 7 In-Wall is a high-performance WiFi 7 in-wall access point, designed to deliver ultra-fast, low-latency wireless connectivity with seamless UniFi integration. Featuring dual-band MU-MIMO, OFDMA, and wired passthrough ports, it ensures optimal coverage and efficiency for modern smart homes, offices, and hospitality environments. Its sleek in-wall design allows for discreet deployment while providing powerful networking capabilities and advanced security features.



U7-IW

With 2.5GbE uplink support and wired passthrough ports, the U7-IW enables high-speed wired and wireless connections, making it ideal for bandwidth-intensive applications like 4K/8K streaming, video conferencing, and IoT deployments. The in-wall form factor ensures discreet, space-saving installation, while advanced security protocols and UniFi network management offer centralized control, VLAN support, and seamless roaming for a superior user experience.

U7-IW2

Ubiquiti UniFi U7-IW Key Features:

  • High-efficiency, four-stream WiFi 7 technology
  • Dual-band operation (2.4 GHz & 5 GHz) – Supports concurrent multi-user connectivity with OFDMA and MU-MIMO
  • 2.5GbE uplink (RJ45, PoE) – High-speed wired connectivity with Power over Ethernet (PoE) support
  • ntegrated wired passthrough ports (Gigabit Ethernet)

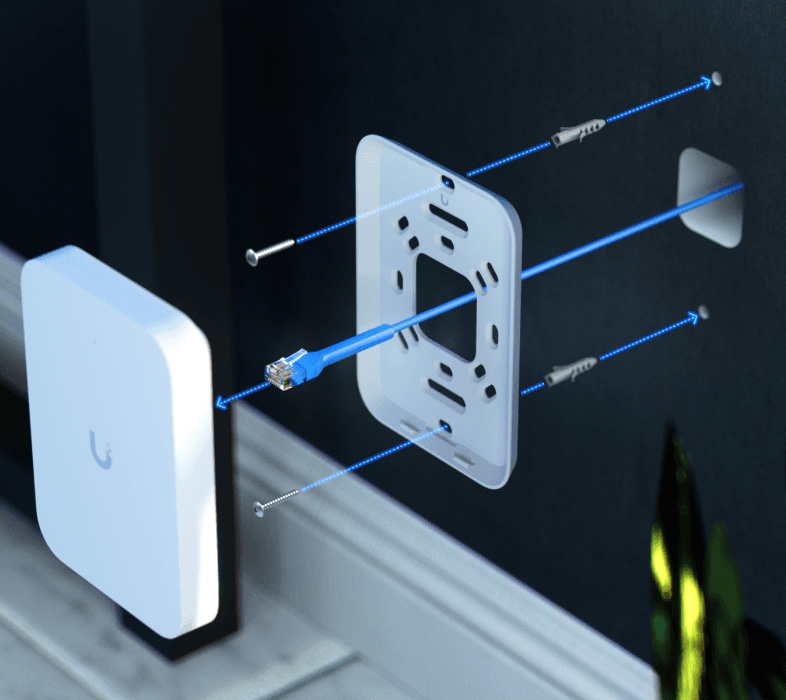

  • Low-profile in-wall mounting
Ubiquiti UniFi U7-IW - Technical Specifications

Overview

  • Dimensions: 137 x 98.7 x 30.2 mm (5.4 x 3.9 x 1.2")
  • WiFi Standard:  WiFi 7
  • Spatial Streams:  4
  • Coverage Area: 115 m² (1,250 ft²)
  • Max. Client Count:  200+
  • Uplink:  2.5 GbE
  • Mounting Locations:  Wall
  • Mounting Plate:  Metal wall mount (Included)
  • Power Method: PoE,  PoE+ (Required for PoE output)

Performance

  •  MIMO
      5 GHz 2 x 2 (DL/UL MU-MIMO)
      2.4 GHz 2 x 2 (DL/UL MU-MIMO)
  •  Max. Data Rate
      5 GHz 4.3 Gbps (BW240)
      2.4 GHz 688 Mbps (BW40)
  •  Antenna Gain
      5 GHz 8 dBi
      2.4 GHz 4 dBi
  •  Max. TX Power
      5 GHz 24 dBm
      2.4 GHz 23 dBm
  •  Max. BSSIDs 8 per Radio
  •  Supported Data Rates
      802.11be (WiFi 7) 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
      802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
      802.11ac (WiFi 5) 6.5 Mbps to 1.7Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
      802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Features

  •  Wireless Meshing:  Yes
  •  Band Steering:  Yes
  •  802.11v BSS Transition Management:  Yes
  •  802.11r Fast Roaming:  Yes
  •  802.11k Radio Resource Management (RRM):  Yes
  •  Advanced Radio Management:  Yes
  •  Passpoint (Hotspot 2.0):  Yes
  •  Captive Hotspot Portal
      Custom Branding Landing Page: Yes
      Voucher Authentication: Yes
      Payment-Based Authentication: Yes
      External Portal Server Support: Yes
      Password Authentication: Yes
      Guest Network Isolation: Yes
  •  Private Pre-Shared Key (PPSK):  Yes
  •  WiFi Speed Limiting:  Yes
  •  Client Device Isolation:  Yes
  •  WiFi Schedules:  Yes
  •  RADIUS over TLS (RadSec):  Yes
  •  Dynamic RADIUS-assigned VLAN:  Yes

Hardware

  • Max. Power Consumption:  13W (Excluding PoE output)
  • Supported Voltage Range:  42.5—57V DC
  • Networking Interface:  (3) 2.5 GbE RJ45 ports
  • Weight : 400 g (14.1 oz)
  • Management:  Ethernet
  • Built-In Switch:  (1) PoE+ input and (1) PoE output
  • Enclosure Material:  Polycarbonate, aluminum alloy
  • Mount Material:  Aluminum alloy
  • LEDs
      System White/Blue
  • Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
  • Certifications: CE, FCC, IC
  • Ambient Operating Temperature:  -30 to 40° C (-22 to 104° F)
  • Ambient Operating Humidity:  5 to 95% noncondensing

    • Software

  • Application Requirements
      UniFi Network :Version 9.0.114 and later
      UniFi OS: iOS™ version 10.20.2 and later, Android™ version 10.21.7 and later
