Wave Pico Technical Specifications

Mechanical

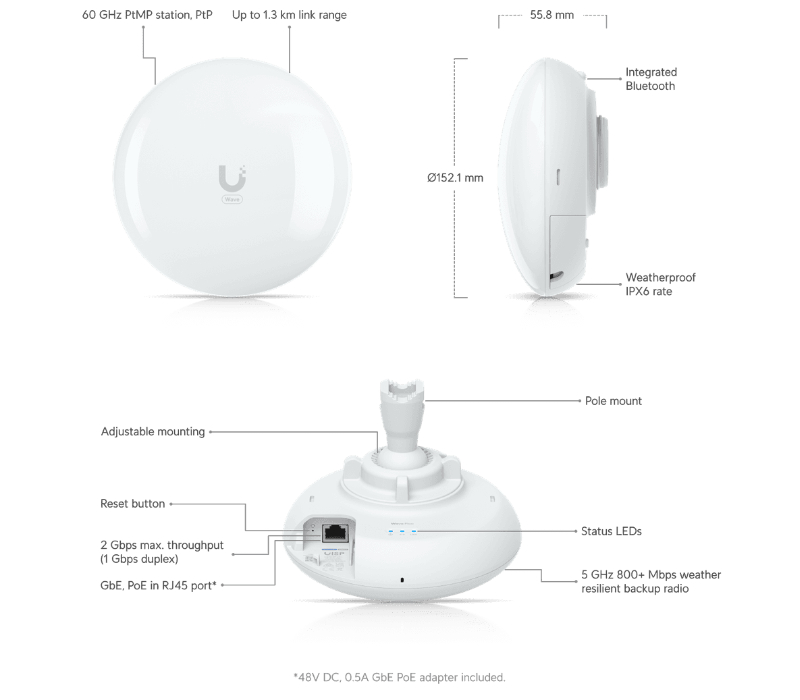

• Dimensions: Ø152.1 x 55.8 mm (Ø6 x 2.2")
• Weight:
  • Without mount: 347 g (12.2 oz)
  • With mount: 409 g (14.4 oz)
• Enclosure material: UV stabilized polycarbonate
• Mount material: UV stabilized polycarbonate
• Pole mount diameter: 20 to 53.1 mm (0.8 to 2.1") on pipe outer diameter
• Wind loading: 31.3 N at 200 km/h (7 lbf at 125 mph)
• Weatherproofing: IPX6

Hardware

• Processor: Dual-core ARM® Cortex®-A53 at 1 GHz
• Memory: DDR3L 512 MB
• Networking interface: (1) GbE RJ45 port
• Max. power consumption: 10W
• Power method:
  • Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8 -)
  • Passive PoE 2-pairs (4, 5+; 7, 8 -), for 44–54V DC only
• Power supply: 48V DC, 0.5A gigabit PoE adapter (included)
• Can be powered by a UISP Router or UISP Switch
• Supported voltage range: 44–54V DC
• GPS: No
• Button: Factory reset
• LEDs: Power, Ethernet, link
• Operating temperature: -40 to 60° C (-40 to 140° F)
• Operating humidity: 5 to 95% noncondensing
• Certifications: FCC, IC, CE

Software

• Operating mode: PtMP station, PtP
• Ubiquiti specific features: Wave AI, discovery protocol
• Services: UISP, ping watchdog, NTP client, SNMP
• Tools: Antenna alignment, discovery utility, ping, trace route, speed test
• Network: Bridge/Router* mode
  • *Router is available in PtMP station mode only.
• Application requirements:
  • UISP web: Version 2.4.61 and later
  • UISP mobile iOS™: Version 2.32.0 and later
  • UISP mobile Android™: Version 2.31.9 and later

System

• Total throughput: 2 Gbps (1 Gbps duplex)
• Max. range:
  • Up to 1.3 km (Wave AP)
  • Up to 0.9 km (Wave AP Micro)
• Encryption: WPA2-PSK (AES)

RF

• Operating frequency*: 57–71 GHz
  • *Depends on regulatory region.
• Channel bandwidth: 2160, 1080 MHz
• Operating channels*:
  • 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz
  • *Depends on regulatory region.
• Modulation: 16QAM, QPSK
• Antenna gain: 27.7 dBi
• Polarization: Vertically linear
• Beamwidth:
  • Azimuth: 3 dB 6°
  • Elevation: 3 dB 6°

Back-Up RF

• WiFi standard: 802.11ax (WiFi 6)
• Operating frequency*:
  • US/CA
  • Worldwide
• U-NII-1 5150 - 5250 MHz
• U-NII-2A 5250 - 5350 MHz
• U-NII-2C 5470 - 5725 MHz
• U-NII-3 5725 - 5850 MHz
• 5180 - 5875 MHz
  • *Depends on regulatory region.
• Channel bandwidth: 20, 40, 80 MHz
• Modulation:
  • BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6)
• Antenna gain: 9 dBi
• Polar
